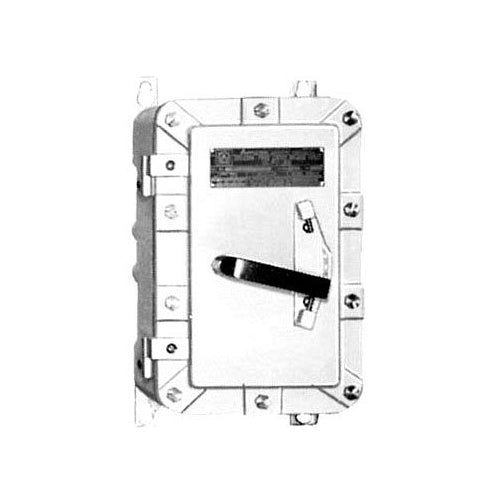

Appleton EB2 Explosion-Proof Enclosure

Overview

Appleton EB2 Explosion-Proof Enclosure

Product Specifications

• UPC: 78138110449
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3R/7B/7C/7D/9E/9F/9G
• Material: COPPER FREE ALUMINUM
• Finish: EPOXY ENAMEL DOUBLE COATED
• Used On: EB SERIES THERMAL MAGNETIC CIRCUIT BREAKER
• Catalog Number: EB2
• Brand Name: Appleton[R]
• Model: EB
• Type: DUST IGNITION PROOF, EXPLOSION PROOF
• Breaker Voltage Rating: 480/600 VAC, 250 VDC
• Breaker Current Rating: 70 TO 150 AMPERE
• Number Of Breaker Poles: 3
• Hub Size: (2) 3/4 INCH
• Catalog Description: CIRCUIT BREAKER ENCLOSURE, TYPE EXPLOSIONPROOF, DUST-IGNITIONPROOF, BREAKER VOLTAGE RATING 480/600 VAC AT 60 HZ, 250 VDC, BREAKER CURRENT RATING 15 TO 100 AMPERE (EHD FRAME), 15 TO 150 AMPERE (FDB FRAME), 125 TO 250 AMPERE (JD FRAME), NUMBER OF BREAKER POLES 2 OR 3, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3R/4X/7BCD/9EFG, MATERIAL COPPER FREE ALUMINUM, FINISH EPOXY ENAMEL COATED, USED ON EB SERIES THERMAL MAGNETIC CIRCUIT BREAKER, APPROVAL UL 1203
• Category: 3 Pole Circuit Breaker Enclosures
• Full Technical Description: Explosionproof, Dust Ignitionproof Type; Copper-Free Aluminum Material; Epoxy Enamel Coated Finish; Eb Circuit Breaker Used on; (2) 3/4 Inch Hub Size; UL 1203 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R/4X/7BCD/9EFG Enclosure; 480/600 Volt AC 60 Hertz, 250 Volt DC Breaker Voltage Rating; 15 to 60 Amp Breaker Current Rating; Application Indoor and Outdoor
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Circuit Breaker Enclosure
• Unspsc: 39121314
• UPC 12 Digit: 781381104494
• SKU Name: app eb2
