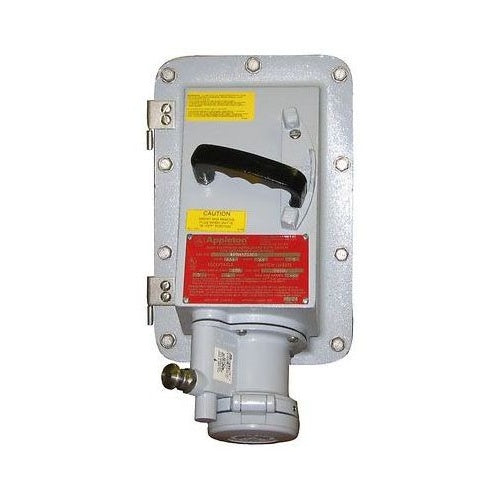

Appleton EBR3034EH30 Explosion-Proof Receptacle w/Circuit Breaker

Overview

Appleton EBR3034EH30 Explosion-Proof Receptacle w/Circuit Breaker

Product Specifications

• UPC: 78138118822
• Number Of Breaker Poles: 3
• Breaker Type: EHD
• Hub Size: (1) 3/4 INCH, (1) 1 1/2 INCH (TOP); (1) 3/4 INCH, (2) 1 1/2 INCH (BOTTOM)
• Hub Location: (2) TOP, (3) BOTTOM
• Number Of Hubs: 5
• Mating Plug: ACP3034BC, CPH3034B
• Grounding Style: EXTRA POLE, SHELL
• Enclosure Material: COPPER FREE ALUMINUM
• Enclosure Finish: BAKED EPOXY CLAD
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/7C/7D/9F/9G
• Catalog Number: EBR3034EH30
• Size: 9.06 INCH W X 13.95 INCH D X 17.3 INCH H
• Brand Name: Appleton[R]
• Model: EBR
• Constructional Feature: EXPLOSION PROOF, DUST IGNITION PROOF
• Breaker Voltage Rating: 480 VAC
• Breaker Current Rating: 30 AMPERE
• Receptacle Current Rating: 30 AMPERE
• Receptacle Configuration: 4 POLE 3 WIRE
• Catalog Description: EBR SERIES RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 480 VAC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, 4, 4X, 7CD
• Category: Pin & Sleeve Devices
• Full Technical Description: 9.06 Inch Width X 13.95 Inch Depth X 17.3 Inch Height Size; (1) 3/4 Inch and (1) 1-1/2 Inch Top, (1) 3/4 Inch and (2) 1-1/2 Inch Bottom Hub Size; Copper-Free Aluminum Enclosure Material; 5 Hub(S); 3 Phase(S); UL 894/1010/1682 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7CD/9FG Enclosure; Explosionproof, Dust Ignitionproof, Weatherproof; Epoxy Powder Coated Enclosure Finish; (2) Top, (3) Bottom Hub Location; Ehd Breaker Type; 2, Shell, Extra Pole Grounding Style; 3 Breaker Pole(S); 480 Volt AC Breaker Voltage Rating; 30 Amp Breaker Current Rating; ACP3023BC Mating Plug; 30 Amp Receptacle Current Rating; 600 Volt AC Receptacle Voltage Rating; 4-Pole 3-Wire Receptacle Configuration; Type Feed-Through; Terminal Type Pressure Wire; Includes Interlocked Circuit Breaker, Spring Cover, Screw Cap; Application Hazardous Location, Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec; EBR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle with Circuit Breaker
• Unspsc: 39121406
• UPC 12 Digit: 781381188227
• SKU Name: app ebr3034eh30
