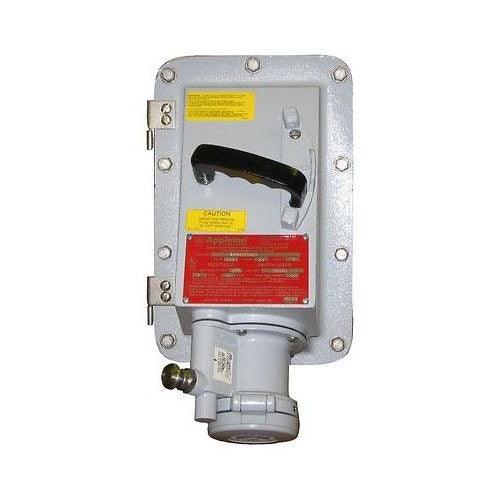

Appleton EBR3034HFB20 Explosion-Proof Receptacle w/Circuit Breaker

Overview

Appleton EBR3034HFB20 Explosion-Proof Receptacle w/Circuit Breaker

Product Specifications

• UPC: 78138118831
• Number Of Breaker Poles: 3
• Breaker Type: FD
• Hub Size: (1) 3/4 INCH, (1) 1 1/2 INCH (TOP); (1) 3/4 INCH, (2) 1 1/2 INCH (BOTTOM)
• Hub Location: (2) TOP, (3) BOTTOM
• Number Of Hubs: 5
• Mating Plug: ACP3034BC, CPH3034B
• Grounding Style: EXTRA POLE, SHELL
• Enclosure Material: COPPER FREE ALUMINUM
• Enclosure Finish: BAKED EPOXY CLAD
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/7C/7D/9F/9G
• Catalog Number: EBR3034HFB20
• Size: 9.06 INCH W X 13.95 INCH D X 17.3 INCH H
• Brand Name: Appleton[R]
• Model: EBR
• Constructional Feature: EXPLOSION PROOF, DUST IGNITION PROOF
• Breaker Voltage Rating: 600 VAC
• Breaker Current Rating: 20 AMPERE
• Receptacle Current Rating: 30 AMPERE
• Receptacle Configuration: 4 POLE 3 WIRE
• Catalog Description: EXPLOSIONPROOF PIN AND SLEEVE RECEPTACLE AND CIRCUIT BREAKER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, BREAKER VOLTAGE RATING 600 VAC, BREAKER CURRENT RATING 20 AMPERE, RECEPTACLE VOLTAGE RATING 600 VAC, RECEPTACLE CURRENT RATING 30 AMPERE, RECEPTACLE CONFIGURATION 4 POLE 3 WIRE, NUMBER OF BREAKER POLES 3, BREAKER TYPE FD, HUB SIZE (1) 3/4 INCH, (1) 1-1/2 INCH (TOP), (1) 3/4 INCH, (2) 1-1/2 INCH (BOTTOM), HUB LOCATION TOP, BOTTOM, NUMBER OF HUBS 3, MATING PLUG ACP3034BC, CPH3034BC, GROUNDING STYLE SHELL, EXTRA POLE, ENCLOSURE MATERIAL COPPER-FREE ALUMINUM, ENCLOSURE FINISH EPOXY POWDER COATED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/7CD/9FG, SIZE 9.06 INCH W X 13.95 INCH X 17.3 INCH H, APPROVAL UL 894/1010/1203/1682/1686, INSULATING BLOCKS MATERIAL FIBER GLASS REINFORCED POLYESTER, APPLICATION LIGHTING SYSTEMS, CONVEYORS, HEATERS, MOTOR-GENERATOR SETS, AIR CONDITIONERS, COMPRESSORS, PUMPS
• Category: Pin & Sleeve Devices
• Full Technical Description: 9.06 Inch Width X 13.95 Inch Depth X 17.3 Inch Height Size; (1) 3/4 Inch and (1) 1-1/2 Inch Top, (1) 3/4 Inch and (2) 1-1/2 Inch Bottom Hub Size; Copper-Free Aluminum Enclosure Material; 5 Hub(S); 3 Phase(S); UL 894/1010/1682 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 a
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle with Circuit Breaker
• Unspsc: 39121406
• UPC 12 Digit: 781381188319
• SKU Name: app ebr3034hfb20
