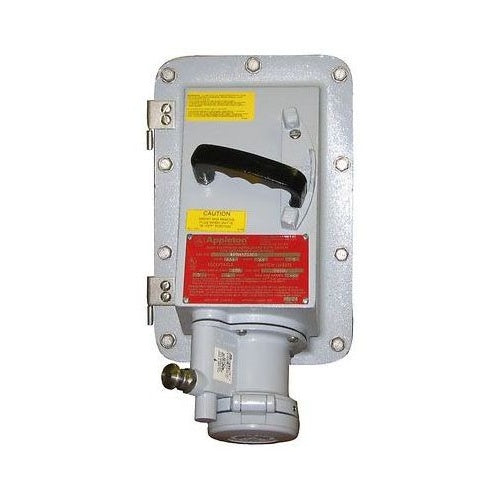

Appleton EBRH1023DS 100A 2W3P Disconnect Switch

Overview

Appleton EBRH1023DS 100A 2W3P Disconnect Switch

Product Specifications

• UPC: 78138147532
• Cover Type: HINGED
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/7C/7D/9F/9G
• Enclosure Material: COPPER FREE ALUMINUM
• Approval: UL 1010, UL 894, UL 1682, UL 1686
• Catalog Number: EBRH1023DS
• Brand Name: Appleton[R]
• Model: EBRH
• Constructional Feature: EXPLOSION PROOF, DUST IGNITION PROOF
• Voltage Rating: 600 VAC
• Current Rating: 100 AMPERE
• Number Of Poles: 2
• Operator Type: HANDLE
• Catalog Description: RECEPTACLE AND DISCONNECT SWITCH, TYPE INTERLOCKED, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 100 AMPERE, NUMBER OF POLES 3, NUMBER OF WIRES 2, DOOR TYPE SPRING DOOR, FUSE PROVISION NON-FUSIBLE, GROUNDING STYLE 2, SHELL, EXTRA POLE, MATERIAL COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/7CD/9FG,
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); 600 Volt AC, 250 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7CD/9FG Enclosure; 100 Amp Current Rating; 3 Pole(S); Explosionproof, Dust Ignitionproof; (1) 1-1/2 Inch Top and (2) 1-1/2 Inch Bottom Hub Type; Non-Fusible Fuse Provision; Weatherproof Spring; 2, Shell, Extra Pole Grounding Style; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec, UL 1010/1203/894/1682; EBRH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381475327
• SKU Name: app ebrh1023ds
