Overview

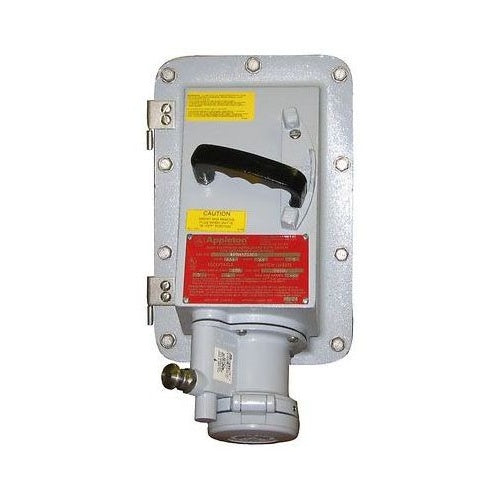

Appleton EBRH1034DS 100A 3W4P Disconnect Switch

Product Specifications

• UPC: 78138151334
• Cover Type: HINGED
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/7C/7D/9F/9G
• Enclosure Material: COPPER FREE ALUMINUM
• Approval: UL 1010, UL 894, UL 1682, UL 1686
• Catalog Number: EBRH1034DS
• Brand Name: Appleton[R]
• Model: EBRH
• Constructional Feature: EXPLOSION PROOF, DUST IGNITION PROOF
• Voltage Rating: 600 VAC
• Current Rating: 100 AMPERE
• Number Of Poles: 3
• Operator Type: HANDLE
• Catalog Description: EBRH SERIES RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 4, NUMBER OF WIRES: 3, AMPERAGE RATING: 100 AMP, VOLTAGE RATING: 600 VAC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, 4, 4X, 7C
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum Material; 3 Wire(S); 600 Volt AC, 250 Volt DC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7CD/9FG Enclosure; 100 Amp Current Rating; 4 Pole(S); Explosionproof, Dust Ignitionproof; (1) 1-1/2 Inch Top and (2) 1-1/2 Inch Bottom Hub Type; Non-Fusible Fuse Provision; Weatherproof Spring; 2, Shell, Extra Pole Grounding Style; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard Nec/Cec, UL 1010/1203/894/1682; EBRH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381513340
• SKU Name: app ebrh1034ds

Resources

• Manufacturer Spec Sheet
