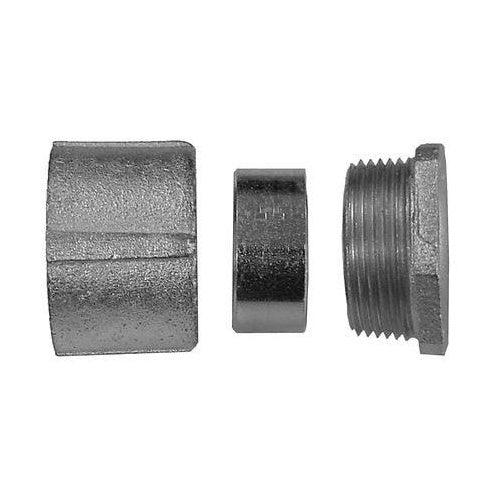

Appleton EC-250 2-1/2" Malleable 3-Pc Conduit Coupling

Overview

Appleton EC-250 2-1/2" Malleable 3-Pc Conduit Coupling

Product Specifications

• UPC: 78138124800
• Approval: UL 514B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Catalog Number: EC-250
• Type: 3-Piece, Threaded
• Trade Size: 2-1/2 Inch
• Diameter: 4 Inch
• Length: 3-3/16 Inch
• Material: Malleable Iron
• Constructional Feature: Concretetight
• Standard Package: 10
• Catalog Description: 3-PIECE UNION, TRADE SIZE: 2-1/2 IN, OUTSIDE DIAMETER: 4 IN, LENGTH: 3-3/16 IN, FLEXIBILITY: RIGID AND IMC, MATERIAL: MALLEABLE IRON, CONNECTION: FEMALE THREADED, STANDARD: UL 514B, UL FILE NUMBER E14814, CSA C22.2 NO. 18.3, CSA 065178 CER
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: 3-Piece, Threaded Type; Zinc Electroplated Malleable Iron Material; 3.19 Inch; Imc/Rigid Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 4 Inch Diameter; 2-1/2 Inch Trade Size; Concrete Tight; Application Commercial/Industrial; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381248006
• SKU Name: app ec250
