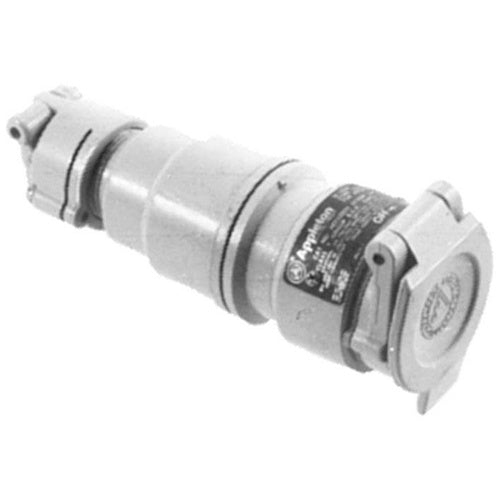

Appleton ECC2023 U Cord Connector

Overview

Appleton ECC2023 U Cord Connector

Product Specifications

• UPC: 78138144069
• Cord Size: 0.538 to 0.639 Inch
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: CSA C22.2
• Additional Information: Excludes Spring Cover
• Catalog Number: ECC2023
• Brand Name: U-Line[R]
• Type: Polarized
• Voltage Rating: 125 VAC
• Current Rating: 20 Ampere
• Number Of Poles: 3
• Number Of Wires: 2
• Ground Type: Grounding
• Catalog Description: U-LINE CABLE CONNECTOR WITHOUT SPRING COVER, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, 7BCD, 9FG, MOTOR HORSEP
• Category: Pin & Sleeve Devices
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 1203, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 3 Pole(S); 0.538 to 0.639 Inch Cord Size; U-LINE[TM] Brand; Power Rating 1HP; Excludes Spring Cover; Application Non-Hazardous Location; Applicable Standard Nec/Cec; ECC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Straight Blade Connector
• Unspsc: 39121406
• UPC 12 Digit: 781381440691
• SKU Name: app ecc2023
