Appleton ECC20232 U Cord Connector

Overview

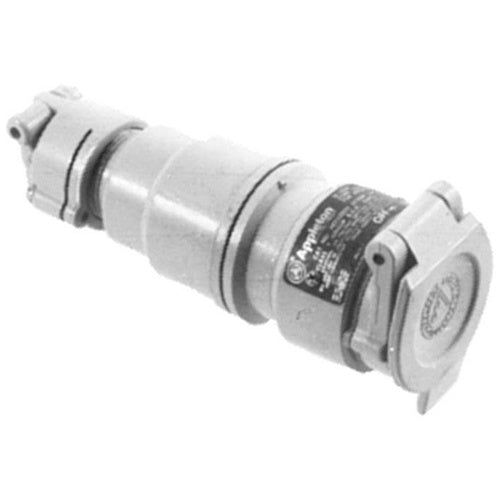

Appleton ECC20232 U Cord Connector

Product Specifications

• UPC: 78138144072
• Cord Size: 0.437 TO 0.625 INCH
• Material: EPOXY BAKED COPPER FREE ALUMINUM
• Catalog Number: ECC20232
• Brand Name: U-Line.
• Type: POLARIZED
• Voltage Rating: 250 VAC
• Current Rating: 20 AMPERE
• Number Of Poles: 3
• Number Of Wires: 2
• Ground Type: GROUNDING
• Catalog Description: CABLE CONNECTOR, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, VOLTAGE RATING 250 VAC, CURRENT RATING 20 AMPERE, NUMBER OF POLES 3, NUMBER OF WIRES 2, CABLE SIZE 0.538 TO 0.639 INCH, MATERIAL EPOXY BAKED COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/7BCD/9EFG, APPROVAL CSA
• Category: Pin & Sleeve Devices
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; 2 Wire(S); UL 1203, CSA C22.2 Approval; 250 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 3 Pole(S); 0.538 to 0.639 Inch Cord Size; U-LINE[TM] Brand; Power Rating 2HP; Excludes Spring Cover; Application Non-Hazardous Location; Applicable Standard Nec/Cec; ECC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Straight Blade Connector
• Unspsc: 39121406
• UPC 12 Digit: 781381440721
• SKU Name: app ecc20232
