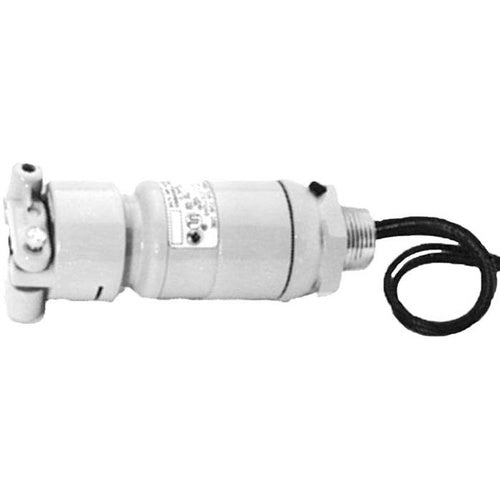

Appleton ECC505RH 1/2" .375-.500 Cord Connector

Overview

Appleton ECC505RH 1/2" .375-.500 Cord Connector

Product Specifications

• UPC: 78138124850
• Additional Information: Nipple Size 1/2 Inch
• Catalog Number: ECC505RH
• Constructional Feature: Watertight
• Voltage Rating: 480 VAC/VDC
• Current Rating: 20 Ampere
• Ground Type: Grounding
• Cord Size: 0.375 to 0.5
• Material: Epoxy Powder Coated Copper Free Aluminum
• Approval: UL, CSA C22.2
• Catalog Description: PORTABLE CORD CONNECTOR, ITEM PORTABLE CORD CONNECTOR, NIPPLE SIZE 1/2 INCH, CORD DIAMETER 0.375 TO 0.5 INCH, MATERIAL EPOXY POWDER COATED COPPER FREE ALUMINUM, APPLICATION CONNECTS PORTABLE CORD TO EXPLOSIONPROOF FIXED ENCLOSURE, APPROVAL UL
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; UL 1203, CSA C22.2 Approval; 480 Volt AC/DC Voltage Rating; 20 Amp Current Rating; Water Tight; 0.375 to 0.5 Inch Cord Size; Nipple Size 1/2 Inch; Used on 18 Thru 12 AWG 3-Conductor Type S or SO Cord; Applicable Standard Nec/Cec; ECC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Straight Blade Connector
• Unspsc: 39121406
• UPC 12 Digit: 781381248501
• SKU Name: app ecc505rh
