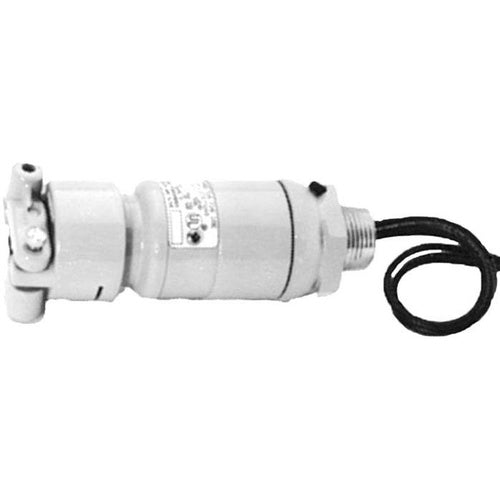

Appleton ECC505RH-C .375-.500 Cable Connector

Overview

Appleton ECC505RH-C .375-.500 Cable Connector

Product Specifications

• Catalog Description: PORTABLE CORD CONNECTOR, ITEM PORTABLE CORD CONNECTOR, NIPPLE SIZE 1/2 INCH, CORD DIAMETER 0.375 TO 0.5 INCH, MATERIAL EPOXY POWDER COATED COPPER FREE ALUMINUM, APPLICATION CONNECTS PORTABLE CORD TO EXPLOSIONPROOF FIXED ENCLOSURE, APPROVAL CSA
• Category: Cable & Cord Grips
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; UL 1203, CSA C22.2 Approval; 480 Volt AC/DC Voltage Rating; 20 Amp Current Rating; Water Tight; 0.375 to 0.5 Inch Cord Size; Nipple Size 1/2 Inch; Used on 18 Thru 12 AWG 3-Conductor Type S or SO Cord; Applicable Standard Nec/Cec; ECC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Straight Blade Connector
• Unspsc: 39121406
• UPC 12 Digit: 781381547161
• SKU Name: app ecc505rhc

Resources

• Manufacturer Spec Sheet
