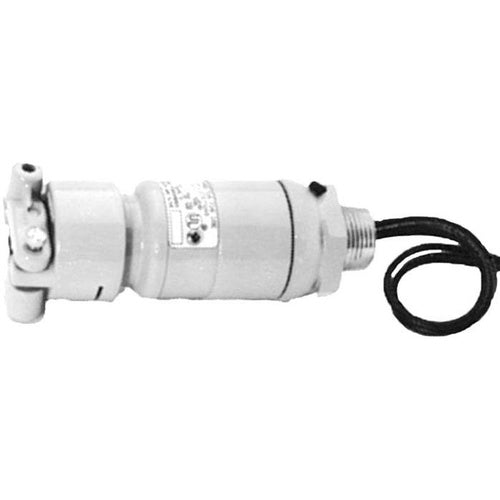

Appleton ECC753RH-C .250-.375 Cable Connector

Product Specifications

• Application: For Use With 18 - 12 AWG 3-Conductor Type S Or SO Cord
• Wire Size: 18 - 12 AWG
• Brand Name: Appleton
• Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum
• Nema Rating: NEMA 7BCD, 9G
• Size: 3/4 IN Nipple
• Special Features: Explosionproof, dust-ignitionproof; ECC connects portable cord to explosionproof fixed enclosure; Watertight; Furnished with 90 DEG C wire leads; 12 IN leads of #12 stranded wire are furnished for connection to wiring or equipment within the explosion-proof housing
• Standard: Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Group G; Class III; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 182.1; CSA Certified: 038644, 087428
• Type: ECC Series Portable Cord Connector
• Voltage Rating: 480 VAC//VDC
• Catalog Description: ECC SERIES PORTABLE CORD CONNECTOR, WIRE SIZE: 18 - 12 AWG, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 480 VAC/VDC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 7BCD, 9G, SIZE: 3/4 IN NIPPLE, FINISH: EPOXY POW
• Category: Cable & Cord Grips
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; UL 1203, CSA C22.2 Approval; 480 Volt AC/DC Voltage Rating; 20 Amp Current Rating; Water Tight; 0.25 to 0.375 Inch Cord Size; Nipple Size 3/4 Inch; Used on 18 Thru 12 AWG 3-Conductor Type S or SO Cord; Applicable Standard Nec/Cec; ECC Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Straight Blade Connector
• Unspsc: 39121406
• UPC 12 Digit: 781381547185
• SKU Name: app ecc753rhc
