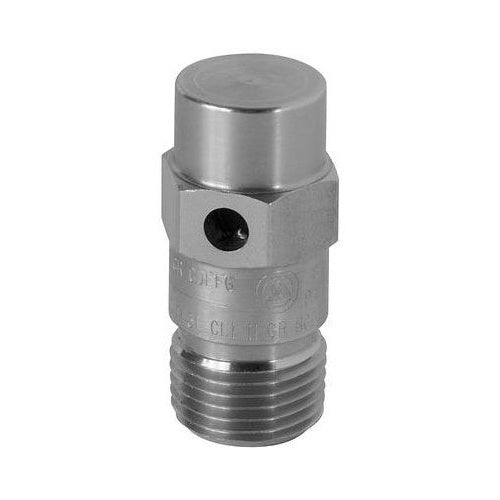

Appleton ECDB38 3/8 Combination Drain/Breather

Overview

Appleton ECDB38 3/8 Combination Drain/Breather

Product Specifications

• UPC: 78138132733
• Catalog Number: ECDB38
• Type: Combination Drain/Breather
• Thread Size: 3/8 Inch
• Material: Stainless Steel
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R
• Approval: UL 886, CSA C22.2
• Additional Information: Finish Natural; Application Automatic Water Drainage, Continuous Ventilation
• Catalog Description: UNIVERSAL DRAIN AND BREATHER, SIZE: 3/8 IN, MATERIAL: STAINLESS STEEL, FINISH: NATURAL STAINLESS STEEL, CONNECTION: TAPERED MNPT, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, DIVISION
• Category: Enclosure Drain & Pressure Breathers
• Full Technical Description: Combination Drain/Breather, Universal Type; Stainless Steel Material; UL 886 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/8 Inch Thread Size; Constructional Feature Explosionproof/Dust Ignitionproof; Application Hazardous Location, Automatic Water Drainage/Continuous Ventilation; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Drain/Breather
• Unspsc: 39121311
• UPC 12 Digit: 781381327336
• SKU Name: app ecdb38

Resources

• Manufacturer Spec Sheet
