Appleton ECDB50B 1/2" Combination Drain/Breather

Overview

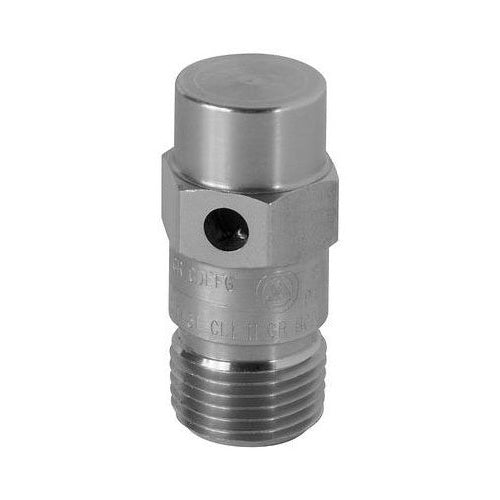

Appleton ECDB50B 1/2" Combination Drain/Breather

Product Specifications

• UPC: 78138163224
• Additional Information: Constructional Feature Explosionproof, Dust Ignitionproof; Application Automatic Water Drainage, Continuous Ventilation
• Catalog Number: ECDB50B
• Brand Name: Appleton
• Model: ECD
• Type: Combination Drain/Breather
• Thread Size: 1/2 Inch
• Material: Natural Stainless Steel
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R
• Approval: UL 886, CSA C22.2
• Catalog Description: UNIVERSAL DRAIN AND BREATHER, SIZE: 1/2 IN, MATERIAL: STAINLESS STEEL, MOUNTING: TOP AND/OR BOTTOM OF ENCLOSURE HOUSING, ENCLOSURE: NEMA 3R, FINISH: NATURAL STAINLESS STEEL, CONNECTION: TAPERED MNPT, STANDARD: UL 886 (1203), UL FILE NUMBE
• Category: Enclosure Drain & Pressure Breathers
• Full Technical Description: Combination Drain/Breather, Universal Type; Stainless Steel Material; UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R Enclosure; 1/2 Inch Thread Size; Constructional Feature Explosionproof/Dust Ignitionproof, Rain Tight; Application Hazardous Location, Automatic Water Drainage/Continuous Ventilation; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Drain/Breather
• Unspsc: 39121311
• UPC 12 Digit: 781381632249
• SKU Name: app ecdb50b

Resources

• Manufacturer Spec Sheet
