Overview

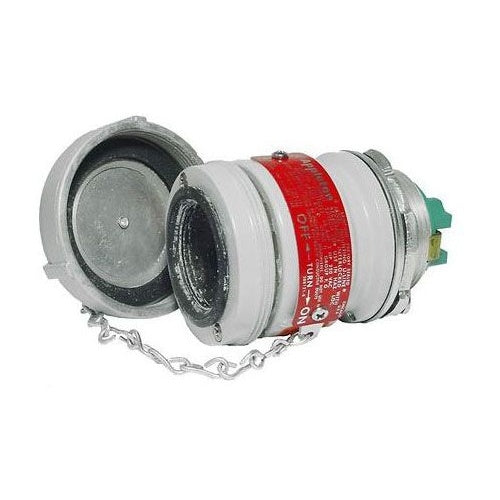

Appleton ECH2023 20A Explosion-Proof Receptacle

Product Specifications

• UPC: 78138144082
• Material: ALUMINUM
• Mating Plug: ECP
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/4/4X/5/7B/7C/7D/9F/9G/12
• Approval: UL
• Catalog Number: ECH2023
• Brand Name: U-Line.
• Model: ECH
• Voltage Rating: 125 VAC
• Current Rating: 20 AMPERE
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: PIN AND SLEEVE RECEPTACLE, TYPE STRAIGHT, VOLTAGE RATING 125 VAC, CURRENT RATING 20 AMPERE, POWER RATING 1 HP, NUMBER OF POLES 3, NUMBER OF WIRES 2, MATERIAL BAKED EPOXY COATED CLAD COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, NEMA 3/3R/3RX/4X/7CD/12, APPROVAL UL 1010/1203, CSA C22.2, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, THREAD SIZE 2 INCH
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead Front Type; Copper-Free Aluminum Material; 2 Wire(S); UL 1203, CSA C22.2 Approval; 125 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/4/4X/7BCD/9FG/12 Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); U-LINE[TM] Brand; Thread Size 2 Inch-11-1/2 NPSM; Mounting Type Panel; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381440820
• SKU Name: app ech2023

Resources

• Manufacturer Spec Sheet
