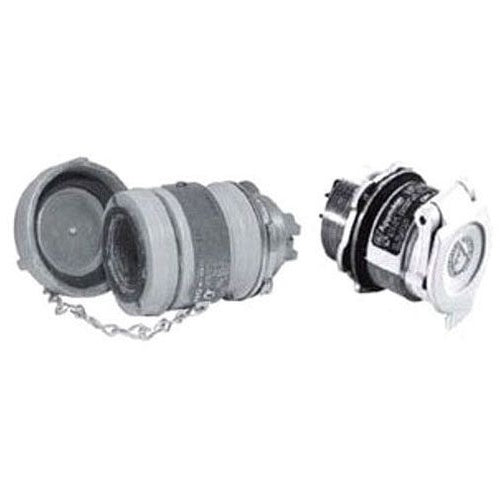

Appleton ECHT2023 U-Line Panel Mounting Receptacle

Overview

Appleton ECHT2023 U-Line Panel Mounting Receptacle

Product Specifications

• UPC: 78138146312
• Cover Type: Spring
• Material: Copper-Free Aluminum
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/4X/5/7B/7C/7D/9F/9G/12
• Approval: UL 1203, CSA C22.2
• Additional Information: Threaded Size 1-1/2 Inch
• Catalog Number: ECHT2023
• Brand Name: Appleton
• Model: ECHT
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Power Rating: 1 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: U-LINE RECEPTACLE, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: ALUMINUM, NEMA RATING: NEMA 3, 3R, 3RX, 4X, 7BCD, 9FG, 12, MOUNTING: PANEL MOUNT WITH 1-1/2 TO 11-1/2 IN NPT, MOTOR HORSEPOWER: 1 HP, DIMENSIONS: 2.59 IN WIDTH X 2.59 IN HEIGHT, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION, 1 AND 2, GROUPS F, G, CLASS III, FOR ECP MATING PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead Front Type; Copper-Free Aluminum Material; 2 Wire(S); UL 1203, CSA C22.2 Approval; 125 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/4/4X/7BCD/9FG/12 Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); U-LINE[TM] Brand; Thread Size 1-1/2 Inch-11-1/2 Threaded; Mounting Type Panel; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381463126
• SKU Name: app echt2023
