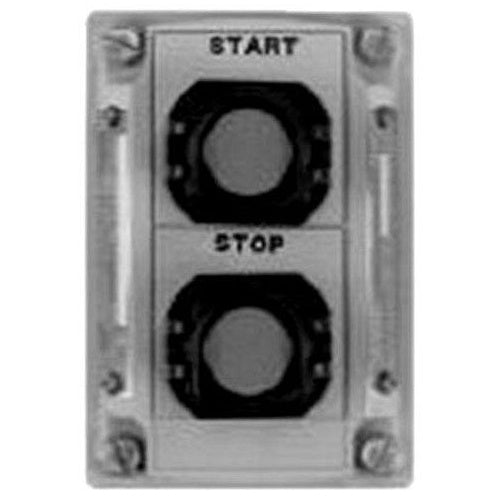

Appleton ED2KBU2 Control Station

Overview

Appleton ED2KBU2 Control Station

Product Specifications

• UPC: 78138181036
• Approval: UL 698, UL 1604, UL 2279, CSA C22.2
• Additional Information: LEGEND START/STOP
• Catalog Number: ED2KBU2
• Brand Name: Contender[R]
• Contact Configuration: 2NO-2NC
• Number Of Pushbuttons: 2
• Number Of Circuits: 2
• Cap/Lens Color: GREEN (START), RED (STOP)
• Material: EPOXY POWDER COATED DIE CAST ALUMINUM
• Enclosure: CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/4X/12
• Catalog Description: DIVISION 2 CONTENDER 2 CIRCUIT UNIVERSAL COVER ASSEMBLY, CONTACT CONFIGURATION: 2 NO/2 NC, MOUNTING: BOX, LEGEND: START/GREEN, STOP/RED, STANDARD: UL 508, 698, 1203, 1604, ISA 12.12.01, CSA C22.2 NO. 14-M, C22.2 NO. 213-M, C22.2 NO.25, C2
• Category: Control Station Cover Assemblies
• Full Technical Description: Epoxy Powder Coated Die-Cast Aluminum Material; Contender 4/4X Series Control Station Used on; 2NO-2NC, Universal Contact Configuration; UL 508/698/1203/1604, UL (Canada and Us), CSA C22.2 Approval; Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class I Zone 2 Group Iib, Class III, NEMA 3/3R/4/4X/12, IP66 Enclosure; Explosionproof; 2 Circuit(S); Green/Red Cap/Lens Color; 2 Pushbutton(S); Legend Start-Stop; Temperature Rating -13 to 104 Deg F; Applicable Standard Nec/Cec, ISA
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Cover
• Unspsc: 39121565
• UPC 12 Digit: 781381810364
• SKU Name: app ed2kbu2
