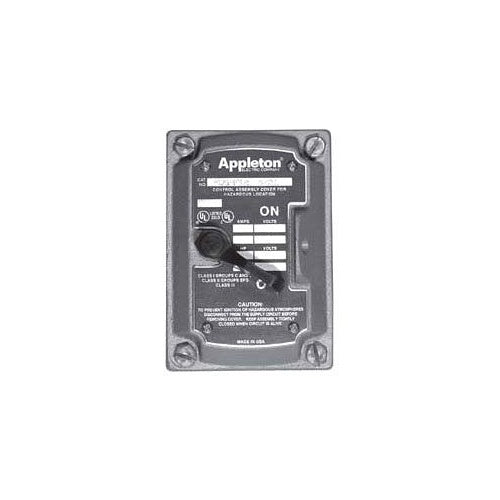

Appleton EDSF12 Cover Chamber Switch -Sp-20A

Overview

Appleton EDSF12 Cover Chamber Switch -Sp-20A

Product Specifications

• UPC: 78138181585
• Catalog Number: EDSF12
• Brand Name: Contender[R]
• Type: Front Cover
• Used On: Tumbler Switch
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Enclosure: Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R/7C/7D/9E/9F/9G
• Catalog Description: UNILETS FRONT COVER, NUMBER OF POLES: 1, MATERIAL: MALLEABLE IRON, STANDARD: CLASS I, DIVISION 1, GROUPS C, D, CLASS I, DIVISION 2, GROUP B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, UL 894, UL 1203, UL E10523, E81751, NEMA 3, 7CD, 9EFG, FOR FACTORY SEALED FRONT OPERATED TUMBLER SWITCHES
• Category: General Purpose Switches
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Contender Factory Sealed Front Operated Tumbler Switch Used on; UL 894/1203, UL (Canada and Us), CSA C22.2 Approval; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Front Operated Operator Type; Number of Poles 1 or 2; Includes Internal Ground Screw; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Selector Switch Cover
• Unspsc: 39121565
• UPC 12 Digit: 781381815857
• SKU Name: app edsf12
