Overview

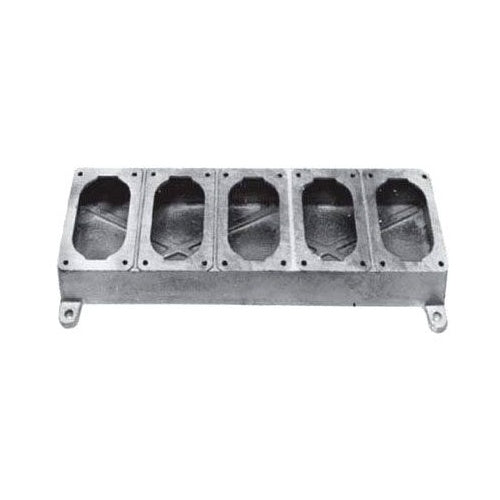

Appleton EFD-5-NL 5-Gang FS Mounting Box

Product Specifications

• UPC: 78138162817
• Catalog Number: EFD-5-NL
• Brand Name: Appleton[R]
• Model: EFD
• Number Of Gangs: 5
• Construction: DEEP
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III NEMA 7C/7D/9E/9F/9G
• Used On: EFD/EDS SERIES CONTROL STATION
• Catalog Description: CONTROL STATION TUMBLER SWITCH MOUNTING BODY, NUMBER OF GANGS 5, CONSTRUCTION DEEP, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/7BCD/9FG, MOUNTING LUG, USED ON EFD/EDS SERIES FACTORY SEALED CONTROL STATION, APPROVAL UL 943/1203, APPLICATION CHEMICAL PLANTS, PETROCHEMICAL PLANTS, REFINERY, HANDLE MATERIAL NYLON 6/6, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF
• Category: Control Station Enclosures
• Full Technical Description: Blank Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Efd Factory Sealed Brazed Hub Control Station Used on; 5 Gang(S); UL 508/698/1203, UL (Canada and Us) Approval; Class I Div 1 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7CD/9EFG Enclosure; Legend Hand-Off-Auto; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39131708
• UPC 12 Digit: 781381628174
• SKU Name: app efd5nl

Resources

• Manufacturer Spec Sheet
