Overview

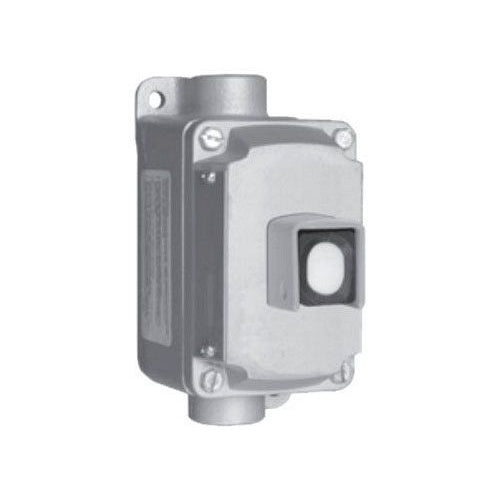

Appleton EFDB110U1 Pushbutton Control Station

Product Specifications

• UPC: 78138170113
• Number Of Circuits: 1
• Contact Configuration: 1NO-1NC, UNIVERSAL
• Operator Type: FRONT OPERATED BUTTON
• Box Type: SINGLE GANG
• Hub Size: (1) 1 INCH
• Enclosure Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7C/7D/9E/9F/9G
• Catalog Number: EFDB110U1
• Brand Name: Appleton[R]
• Model: EFDB
• Type: DEAD END
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 600 VAC
• Current Rating: 10 AMPERE
• Number Of Elements: 1
• Catalog Description: PUSHBUTTON CONTROL STATION, TYPE DEAD END, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, LEGEND START/STOP, NUMBER OF CIRCUITS 1, CONTACT CONFIGURATION 1NO-1NC, UNIVERSAL, OPERATOR TYPE FRONT OPERATED BUTTON, BOX TYPE SINGLE GANG, HUB SIZE 1 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, APPROVAL UL 508/698/1203, OVERALL SIZE 3 INCH W X 5 INCH D X 6.31 INCH H, APPLICATION HAZARDOUS LOCATION, OPERATION TYPE MOMENTARY
• Category: Control Station Complete Assemblies
• Full Technical Description: Dead End Type; Universal Contact Configuration; 1 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Copper-Free Aluminum (Cover) Enclosure Material; UL 508/698/1203, UL (Canada and Us) Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Start/Stop Legend; Explosionproof, Dust Ignitionproof; 1 Circuit(S); 1-Gang Box Type; Operation Type Momentary; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec; E
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381701136
• SKU Name: app efdb110u1
