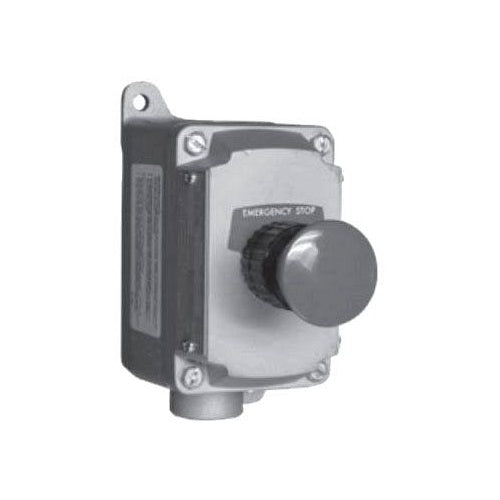

Appleton EFDB175UM1 Pushbutton Switch Station

Overview

Appleton EFDB175UM1 Pushbutton Switch Station

Product Specifications

• UPC: 78138170131
• Number Of Circuits: 1
• Contact Configuration: 1NO-1NC, Universal
• Operator Type: Front Operated Button
• Box Type: 1-Gang
• Hub Size: 3/4 Inch
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7BCD/9EF9G
• Approval: UL 508/698/1203
• Additional Information: Constructional Feature Explosionproof, Dust Ignitionproof; Includes Internal Ground Screw; Application Hazardous Location
• Catalog Number: EFDB175UM1
• Brand Name: Appleton
• Model: EFDB
• Type: Dead End
• Constructional Feature: Explosionproof, Dust Ignitionproof, Rain Tight, Wet Location
• Voltage Rating: 600 Volt AC
• Current Rating: 10 Amp
• Legend: Emergency Stop
• Catalog Description: EFDB SERIES 1-GANG 1 CIRCUIT PUSH BUTTON SWITCH, ACTION: MAINTAINED, CONTACT CONFIGURATION: 1 NO/1 NC, CONTACT RATING: 10 AMP AT 600 VAC, ACTUATOR: RED MUSHROOM HEAD, ENCLOSURE: NEMA 3, 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 3/4 IN DE
• Category: Control Station Complete Assemblies
• Full Technical Description: Dead End Type; Universal Contact Configuration; 3/4 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Copper-Free Aluminum (Cover) Enclosure Material; UL 508/698/1203, UL (Canada and Us) Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Emergency Stop Legend; Explosionproof, Dust Ignitionproof; Red Mushroom Head Operator Type; 1 Circuit(S); 1-Gang Box Type; Operation Type Maintained; Overall Dimension 3 Inch Width X 6.31 Inch Depth X 6.13 Inch Height; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec; EFDB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381701310
• SKU Name: app efdb175um1
