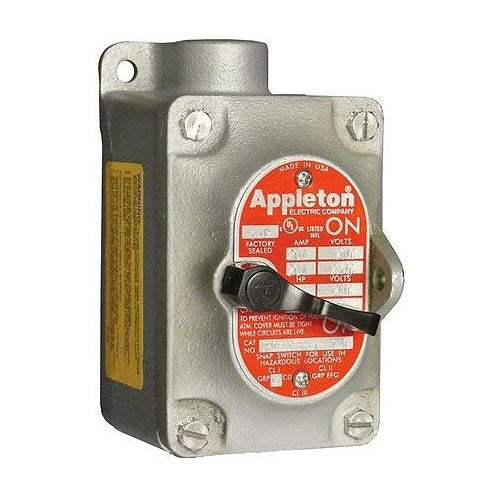

Appleton EFDC150-3MS 1/2" EFD-Unilet

Overview

Appleton EFDC150-3MS 1/2" EFD-Unilet

Product Specifications

• UPC: 78138127360
• Catalog Number: EFDC150-3MS
• Brand Name: Appleton[R]
• Model: EFD
• Type: 3 POLE MANUAL CONTACTOR
• Used On: EDS SERIES MANUAL MOTOR STARTER
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/7C/7D/9E/9F/9G
• Additional Information: HUB SIZE 1/2 INCH; FEED THROUGH
• Catalog Description: MANUAL CONTACTOR, TYPE FEED THROUGH, USED ON EDS SERIES MANUAL MOTOR CONTROL STATION, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST IGNITIONPROOF, ENCLOSURE CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/7C/7D/9E/9F/9G, NUMBER OF POLES 3, APPROVAL CSA, UL (CANADA AND US), HUB SIZE 1/2 INCH, SWITCH RATING 30 AMPERE AT 600 VAC, 3 HP AT 120 VAC, 7-1/2 HP AT 240 VAC, 15 HP AT 480/600 VAC, MATERIAL GRAY EPOXY POWDER COATED MALLEABLE IRON (BODY/COVER), NYLON (OPERATING HANDLE), COPPER FREE ALUMINUM (SEALING CHAMBER)
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: 3-Pole, Manual Contactor, Feed-Through Type; Eds Manual Motor Starter Used on; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Hub Size 1/2 Inch; Switch Rating 30 Amp 600 Volt AC, 3 HP 120 Volt AC, 7-1/2 HP 240 Volt AC, 15 HP 480/600 Volt AC; Applicable Standard Nec/Cec, UL (Canada and Us), UL 508/698/1203, CSA C22.2; EFD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Motor Starter Accessories
• Unspsc: 39121521
• UPC 12 Digit: 781381273602
• SKU Name: app efdc1503ms

Resources

• Manufacturer Spec Sheet
