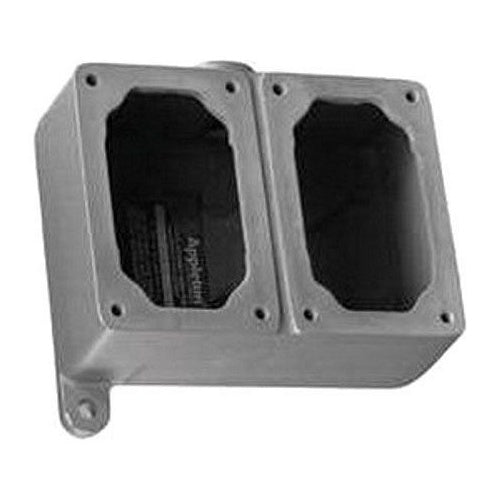

Appleton EFDC210-NL-Q 2-Gang Unilet

Overview

Appleton EFDC210-NL-Q 2-Gang Unilet

Product Specifications

• UPC: 78138110619
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED ASTM A47-77 32510 MALLEABLE IRON
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 7C/7D/9E/9F/9G
• Size: 6.19 INCH W X 2.5 INCH D
• Used On: EFD/EDS SERIES FACTORY SEALED CONTROL STATION
• Catalog Number: EFDC210-NL-Q
• Brand Name: U-Line[R]
• Model: EFD
• Type: FEED THROUGH
• Number Of Gangs: 2
• Construction: DEEP
• Number Of Hubs: 2
• Hub Size: 1 INCH
• Catalog Description: 2-GANG FEED-THRU MOUNTING BOX, NUMBER OF OUTLET: 2, MATERIAL: MALLEABLE IRON, SIZE: 1 IN, CABLE ENTRY: (2) 1 IN HUB, KNOCKOUTS: NO, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), FOR EDS SERIES FACTORY SEALE
• Category: Control Station Enclosures
• Full Technical Description: Feed-Through Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Efd Factory Sealed Control Station Used on; 1 Inch Hub Size; 2 Hub(S); 2 Gang(S); UL 508/698/1203, UL (Canada and Us) Approval; Class I Div 1 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7CD/9EFG Enclosure; Legend Hand-Off-Auto; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39131708
• UPC 12 Digit: 781381106191
• SKU Name: app efdc210nlq

Resources

• Manufacturer Spec Sheet
