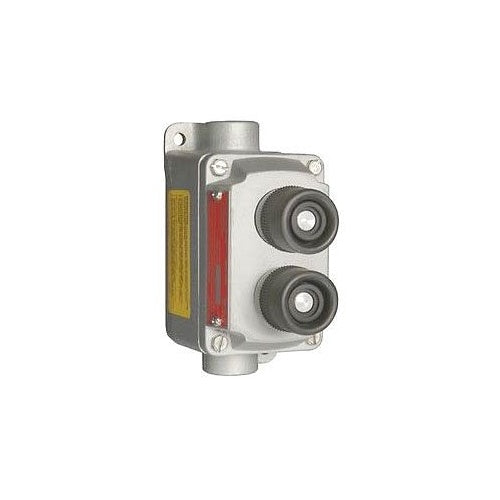

Appleton EFKBDU2 1-Gang 2-Gang Tandem & 3-Device E

Overview

Appleton EFKBDU2 1-Gang 2-Gang Tandem & 3-Device E

Product Specifications

• UPC: 78138180936
• Catalog Number: EFKBDU2
• Brand Name: UNILETS.
• Constructional Feature: DUST IGNITION PROOF
• Device Type: (2) PUSHBUTTON
• Number Of Circuits: 2
• Contact Configuration: UNIVERSAL
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7C/7D/9E/9F/9G
• Used On: EFDB SERIES PUSHBUTTON STATION
• Catalog Description: EFK SERIES 2 CIRCUIT PUSH BUTTON COVER ASSEMBLY, CONTACT CONFIGURATION: 1 NO/1 NC, ENCLOSURE: NEMA 3, 7C, 7D, 9E, 9F, 9G, MATERIAL: COPPER FREE ALUMINUM, STANDARD: UL 508, UL 698, UL 1203, E10449, E81751 UL LISTED, CLASS I, DIVISION 1 AND 2, GROUPS C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G AND CLASS III, FOR EFDB SERIES PUSHBUTTON STATION
• Category: Control Station Cover Assemblies
• Full Technical Description: Copper-Free Aluminum Material; Efd/Efdb and Eds Series Pushbutton Control Station Used on; 2NO-2NC, Universal Contact Configuration; 600 Volt AC 10 Amp Contact Rating; UL 508/698/1203, UL (Canada and Us) Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3R/7BCD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; 2 Circuit(S); 2 Pushbutton(S); Applicable Standard NEC
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Cover
• Unspsc: 39122216
• UPC 12 Digit: 781381809368
• SKU Name: app efkbdu2

Resources

• Manufacturer Spec Sheet
