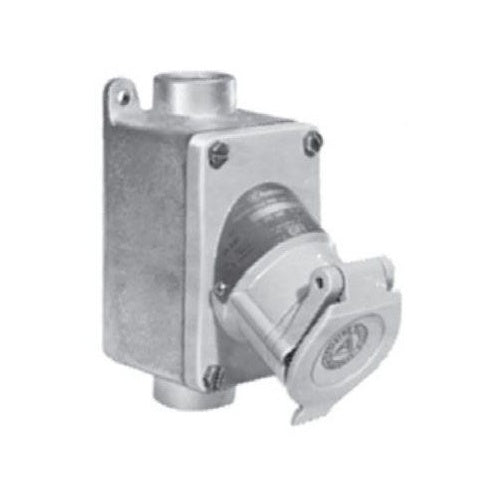

Appleton EFSC175-2023 N7&9 Nma5-20R Receptacle(Plug Shown Is Sold Separately)

Overview

Appleton EFSC175-2023 N7&9 Nma5-20R Receptacle(Plug Shown Is Sold Separately)

Product Specifications

• UPC: 78138128400
• Number Of Wires: 2
• Hub Size: 3/4 Inch
• Box Type: 1-Gang
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III
• Approval: UL, CSA
• Additional Information: Material Epoxy Powder Coated Copper-Free Aluminum (Receptacle), Zinc Electroplate Chromate Epoxy Powder Coat Malleable Iron (Mounting Box)
• Catalog Number: EFSC175-2023
• Brand Name: U-Line[TM]
• Model: EFSC
• Type: Feed Through
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Power Rating: 1 HP
• Number Of Poles: 3
• Catalog Description: U-LINE 1-GANG RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM RECEPTACLE, MALLEABLE IRON MOUNTING BOX, NEMA RATING: NEMA 3, 3R, MOUNTING: SURFACE MOUNT WITH 3/4 IN FEED-THRU HUB, MOTOR HORSEPOWER: 1 HP, FINISH: EPOXY POWDER COAT, DIMENSIONS: 3 IN WIDTH X 6.13 IN HEIGHT X 5.69 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS F, G, CLASS III, UL LISTED: E10784, E81751, UL STANDARD: 1203, 1010, 894, CSA STANDARD: C22.2 NO. 25, C22.2 NO. 30, C22.2 NO. 42, C22 NO.159, CSA CERTIFIED: 038644, FOR ECP AND NCP MATING PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Feed-Through Type; 3/4 Inch Hub Size; 2 Wire(S); UL 894/1010/1203, CSA C22.2 Approval; 125 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); 1-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Overall Dimension 3.5 Inch Width X 5.64 Inch Depth X 6.5 Inch Height; Constructional Feature Explosionproof/Dust Ignitionproof; Number of Conduit Opening 2; Material Malleable Iron (Mounting Box), Epoxy Powder Coated Cop
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381284004
• SKU Name: app efsc1752023
