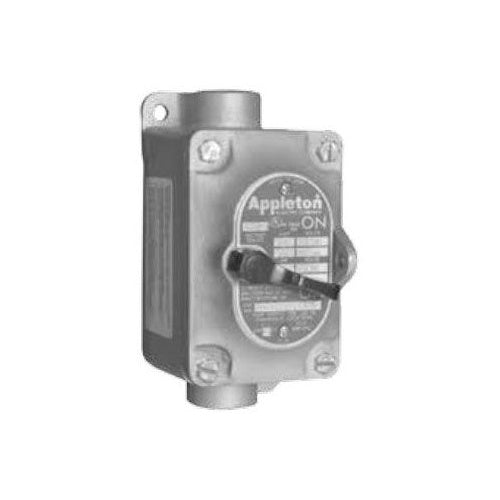

Appleton EFSC175-F2 3/4" Explosion-Proof Switch

Product Specifications

• UPC: 78138128410
• Box Type: Single Gang
• Hub Size: 3/4 Inch
• Enclosure Material: ASTM A47-77 Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Actuator Material: Nylon 6/6
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7CD/9EFG
• Approval: UL 894/1203
• Additional Information: Application Designed to Prevent Arcing of Enclosed Switches in Ignitable Atmospheres During Connect and Disconnect Operation of Lighting and Light Power Loads, Use in Classified Areas Where Ignitable Vapors, Gases or Highly Combustible Dusts are Present,
• Catalog Number: EFSC175-F2
• Model: EFS
• Type: Feed Through
• Constructional Feature: Dust Ignitionproof, Explosionproof
• Voltage Rating: 120 to 277 VAC
• Current Rating: 20 Ampere
• Contact Configuration: 2-Pole
• Operator Type: Front Operated Lever
• Catalog Description: UNILETS EFS SERIES 1-GANG TUMBLER SWITCH, VOLTAGE RATING: 120 - 277 VAC, AMPERAGE RATING: 20 AMP, NUMBER OF POLES: 2, ACTUATOR: FRONT OPERATED, ENCLOSURE: NEMA 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 3/4 IN FEED-THRU HUB, HP RATING: 1 HP AT 120 VAC, 2 HP AT 240 VAC, MATERIAL: MALLEABLE IRON BODY, NYLON 6/6 HANDLE, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), HEIGHT: 4.63 IN, WIDTH: 3 IN, DEPTH: 4.53 IN, STANDARD: UL 894, UL 1203, E10523, E81751 UL LISTED, CLASS I, DIVISION 1 AND 2, GROUPS C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G AND CLASS III, FOR USE IN CLASSIFIED AREAS WHERE IGNITABLE VAPORS, GASES OR HIGHLY COMBUSTIBLE DUSTS ARE PRESENT
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: Feed-Through Type; 2-Pole Contact Configuration; 3/4 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 894/1203 Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7CD/9EFG Enclosure; 20 Amp Current Rating; Explosionproof, Dust Ignitionproof; Front Operated Lever Operator Type; Nylon 6/6 Actuator Material; 1-Gang Box Type; Power Rating 1 HP at 120 Volt AC, 2 HP at 240 Volt AC; Overall Dimension 3 Inch Width X 4.53 Inch Depth X 6.13 Inch Height; Includes Internal Ground Screw; App
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381284103
• SKU Name: app efsc175f2
