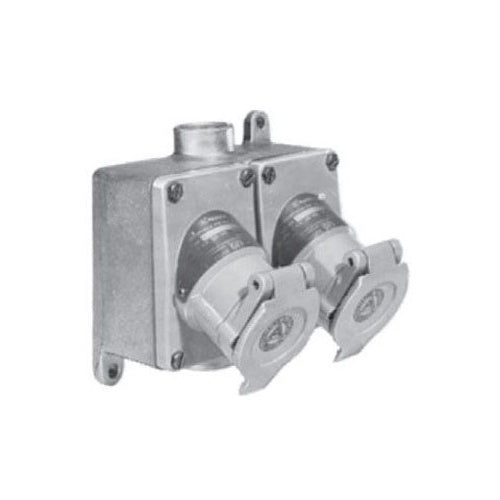

Appleton EFSC275-20232 250V Receptacle & Box

Overview

Appleton EFSC275-20232 250V Receptacle & Box

Product Specifications

• UPC: 78138116779
• Hub Size: 3/4 INCH
• Box Type: TWO GANG
• Cover Type: SPRING
• Mating Plug: ECP, NCP
• Enclosure: CLASS I GROUP C D, CLASS II GROUP F G, CLASS III, NEMA 3/3R/7B/7C/7D/9F/9G
• Catalog Number: EFSC275-20232
• Brand Name: U-Line.
• Type: FEED THROUGH
• Voltage Rating: 250 VAC
• Current Rating: 20 AMPERE
• Power Rating: 2 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: U-LINE 2-GANG RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 250 VAC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM RECEPTACLE, MALLEABLE IRON MOUNTING BOX, NEM
• Category: Pin & Sleeve Devices
• Full Technical Description: Feed-Through Type; 3/4 Inch Hub Size; 2 Wire(S); UL 894/1010/1203, CSA C22.2 Approval; 250 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III Enclosure; 20 Amp Current Rating; Spring Cover Type; 2 HP Power Rating; 3 Pole(S); 2-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Overall Dimension 6.19 Inch Width X 5.64 Inch Depth; Constructional Feature Explosionproof/Dust Ignitionproof; Number of Conduit Opening 2; Material Malleable Iron (Mounting Box), Epoxy Powder Coated Copper-Free Aluminum (Cover); Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Petrochemical Plant, Petroleum Refinery, Paint/Chemical Plant; Includes External Seal; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381167796
• SKU Name: app efsc27520232
