Product information
Overview

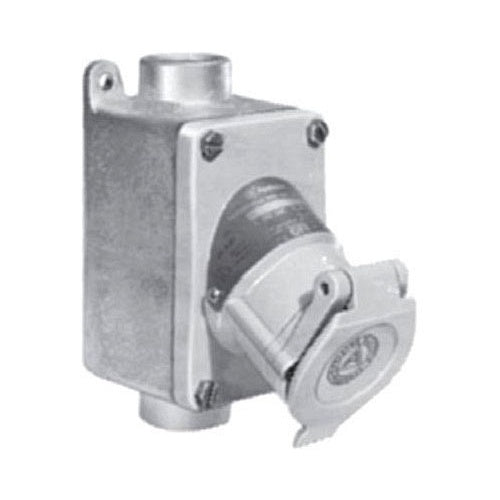

Appleton EFSCB175-2023M 3P 20A 125V Receptacle
Product Specifications
- UPC: 78138139733
- Hub Size: 3/4 Inch
- Box Type: Single Gang
- Cover Type: Spring
- Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III
- Approval: UL 1203/1010/894, CSA C22.2
- Additional Information: Overall Dimension 3.5 Inch W x 6.5 Inch H; Application Lighting System, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Stationary Equipment
- Catalog Number: EFSCB175-2023M
- Brand Name: U-Line[R]
- Type: Feed Through
- Voltage Rating: 125 VAC
- Current Rating: 20 Ampere
- Power Rating: 1 HP
- Number Of Poles: 3
- Number Of Wires: 2
- Catalog Description: U-LINE 1-GANG RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: MALLEABLE IRON RECEPTACLE AND MOUNTING BOX, NEMA RATING: NEMA 3, 3R, MOUNTING: SURFACE
- Category: Pin & Sleeve Devices
- Full Technical Description: Feed-Through Type; 3/4 Inch Hub Size; 2 Wire(S); UL 894/1010/1203, CSA C22.2 Approval; 125 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/7BCD/9FG Enclosure; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); 1-Gang Box Type; Ecp Mating Plug; U-LINE[TM] Brand; Overall Dimension 3.5 Inch Width X 5.64 Inch Depth X 6.5 Inch Height; Constructional Feature Explosionproof/Dust Ignitionproof; Material Zinc Electroplate/Chromate/Epoxy Powder Coated Malleable Iron (Mounting Box/Cover); Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Petrochemical Plant, Petroleum Refinery, Paint/Chemical Plant; Excludes External Seal; Applicable Standard Nec/Cec
- Manufacturer: Appleton Electric
- Manufacturer Brand: Appleton Electric
- Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
- Unspsc: 39121406
- UPC 12 Digit: 781381397339
- SKU Name: app efscb1752023m
