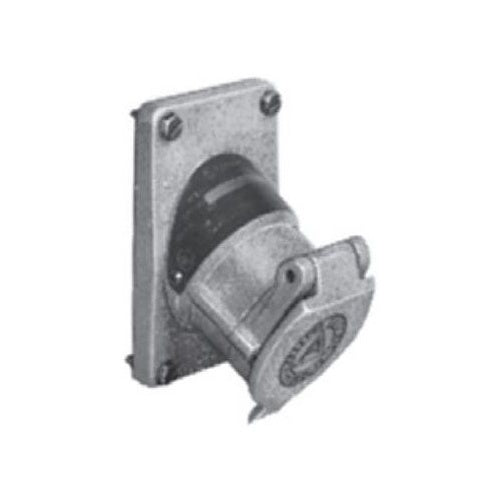

Appleton EFSR-2023 2W-3P Receptacle

Overview

Appleton EFSR-2023 2W-3P Receptacle

Product Specifications

• UPC: 78138128805
• Catalog Number: EFSR-2023
• Type: Cover
• Used On: 20 Amp Explosionproof Pin and Sleeve Receptacle
• Additional Information: Number of Wires 2; Number of Poles 3; Material Epoxy Powder Coated Copper-Free Aluminum; Approval UL, CSA
• Catalog Description: U-LINE 1-GANG REPLACEMENT RECEPTACLE, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, MOUNTING: BOX, MOTOR HORSEPOWER: 1 HP, FINISH: EPOXY POWDER COAT, DIMENSIONS: 3 IN WIDTH X 4.63 IN HEIGHT X 3.19 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2 GROUPS C, D, CLASS I, DIVISION 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2 GROUPS F, G, CLASS III, UL LISTED: E10784, E81751, UL STANDARD: 1203, 1010, 894, CSA STANDARD: C22.2 NO. 25, C22.2 NO. 30, C22.2 NO. 42, C22 NO.159, CSA CERTIFIED: 038644, FOR ECP MATING PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Aluminum Material; 2 Wire(S); 125 Volt AC Voltage Rating; 20 Amp Current Rating; Spring Cover Type; 1 HP Power Rating; 3 Pole(S); U-LINE[TM] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381288057
• SKU Name: app efsr2023
