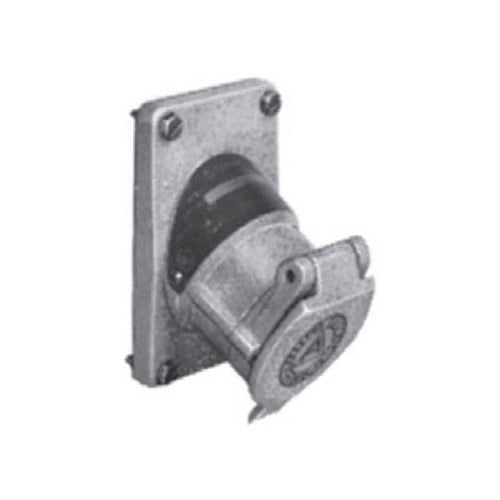

Appleton EFSR-20232 Explosion-Proof Receptacle

Overview

Appleton EFSR-20232 Explosion-Proof Receptacle

Product Specifications

• UPC: 78138110732
• Cover Type: Spring
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Enclosure: Class I Div 1 Group B C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R
• Approval: UL 1203/1010/894, CSA C22.2
• Catalog Number: EFSR-20232
• Brand Name: U-Line[TM]
• Type: 1 or 2-Gang
• Voltage Rating: 250 Volt AC
• Current Rating: 20 Amp
• Power Rating: 2 HP
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: U-LINE 1-GANG REPLACEMENT RECEPTACLE, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 250 VAC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, NEMA RATING: NEMA 3, 3R, MOUNTING: BOX, MOTOR HORSEPOWER: 2 HP, FINISH: EPOXY POWDER COAT, DIMENSIONS: 3 IN WIDTH X 4.63 IN HEIGHT X 3.19 IN DEPTH, STANDARD: CLASS I, DIVISION 1 AND 2 GROUPS C, D, CLASS I, DIVISION 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2 GROUPS F, G, CLASS III, UL LISTED: E10784, E81751, UL STANDARD: 1203, 1010, 894, CSA STANDARD: C22.2 NO. 25, C22.2 NO. 30, C22.2 NO. 42, C22 NO.159, CSA CERTIFIED: 038644, FOR ECP MATING PLUGS
• Category: Pin & Sleeve Devices
• Full Technical Description: Malleable Iron (Mounting Box), Epoxy Powder Coated Copper-Free Aluminum (Cover) Material; 2 Wire(S); UL 894/1010/1203, CSA C22.2 Approval; 250 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/3RX/7BCD/9FG Enclosure; 20 Amp Current Rating; Spring Cover Type; 2 HP Power Rating; 3 Pole(S); Ecp Mating Plug; U-LINE[TM] Brand; Overall Dimension 3 Inch Width X 3.13 Inch Depth X 4.63 Inch Height; Constructional Feature Explosionproof/Dust Ignitionproof; Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump, Damp Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381107327
• SKU Name: app efsr20232
