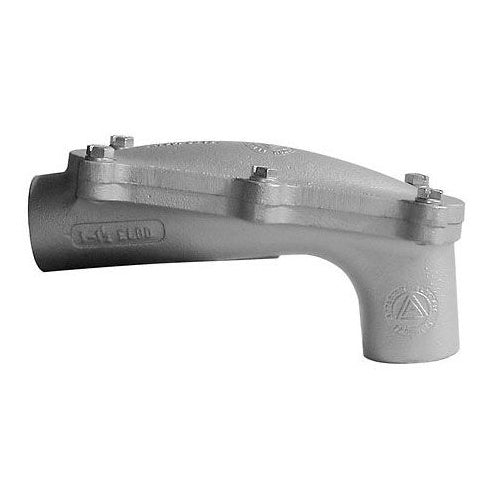

Appleton ELBD100A 1" 90D Pulling Elbow

Product Specifications

• UPC: 78138162203
• Finish: Epoxy Powder Coated
• Approval: UL 886, CSA C22.2
• Additional Information: Application Provides Access to Conductors for Pulling, Splicing and Maintenance in Hazardous Location
• Catalog Number: ELBD100A
• Brand Name: Unilet[R]
• Model: ELBD
• Type: Pulling
• Trade Size: 1 Inch
• Bend Angle: 90 Deg
• Connection Type: Female
• Material: Copper Free Aluminum
• Catalog Description: ELBD SERIES 90 DEG PULLING ELBOW, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, LENGTH: 7.88 IN, TRADE SIZE: 1 IN, FLEXIBILITY: EMT, CONNECTION: FEMALE THREADED, DIMENSIONS: 3.94 IN WIDTH X 5 IN HEIGHT, STANDARD: UL 886, UL FILE NUMBER
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Copper-Free Aluminum, Neoprene (Gasket), Steel (Cover Screw) Material; Epoxy Powder Coated, Zinc Electroplated (Cover Screw) Finish; Tapered Threaded Hub Connection Type; UL 886 Approval; 1 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Volume 33.2 Cubic Inch; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group D, Class I Zone 1 and 2 Group Iia, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7CD/9EFG; Used on Threaded Metal Conduit; Includes (2) Furnished Reducing Bushing; Application Hazardous Location; Applicable Standard Nec/Cec, Federal Specification A-A-50563; ELBD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381622035
• SKU Name: app elbd100a
