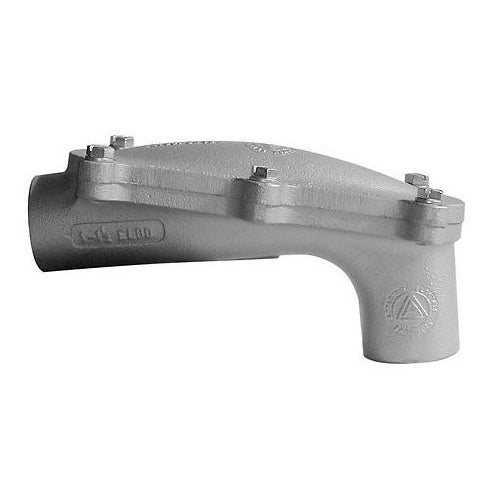

Appleton ELBD400A 4" Aluminum 90D Pulling Elbow

Overview

Appleton ELBD400A 4" Aluminum 90D Pulling Elbow

Product Specifications

• UPC: 78138162212
• Connection Type: FEMALE
• Material: COPPER FREE ALUMINUM ALLOY
• Finish: EPOXY POWDER COATED
• Trade Size In Inch Uom: in
• Catalog Number: ELBD400A
• Brand Name: UNILET.
• Model: ELBD
• Type: PULLING
• Trade Size: 4 INCH
• Trade Size In Inch: 4
• Trade Size Fractional: 4
• Bend Angle: 90 DEG
• Catalog Description: ELBD SERIES 90 DEG PULLING ELBOW, MATERIAL: MALLEABLE IRON, FINISH: EPOXY POWDER COAT, LENGTH: 28-1/4 IN, TRADE SIZE: 4 IN, FLEXIBILITY: EMT, CONNECTION: FEMALE THREADED, DIMENSIONS: 7.38 IN WIDTH X 12-3/4 IN HEIGHT, STANDARD: UL 886, UL
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Copper-Free Aluminum, Neoprene (Gasket), Steel (Cover Screw) Material; Epoxy Powder Coated, Zinc Electroplated (Cover Screw) Finish; Tapered Threaded Hub Connection Type; UL 886 Approval; 4 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Volume 713 Cubic Inch; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group D, Class I Zone 1 and 2 Group Iia, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7CD/9EFG; Used on Threaded Metal Conduit; Includes (2) Reducing Bushing; Application Hazardous Location; Applicable Standard Nec/Cec, Federal Specification A-A-50563; ELBD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381622127
• SKU Name: app elbd400a

Resources

• Manufacturer Spec Sheet
