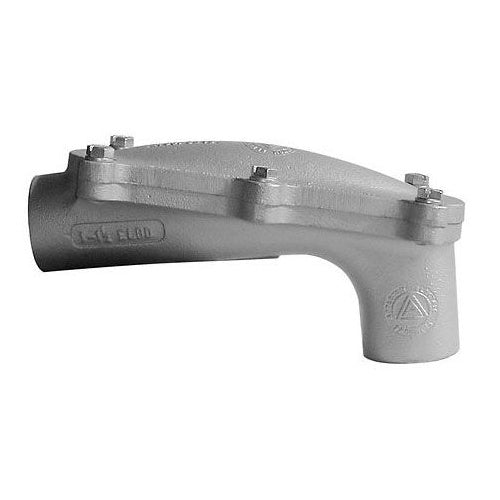

Appleton ELBD50 1/2" 90D Pulling Elbow

Overview

Appleton ELBD50 1/2" 90D Pulling Elbow

Product Specifications

• UPC: 78138129310
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated
• Approval: UL 886, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Dust-Ignitionproof, Rain Tight; Enclosure Type Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III; Used On Threaded Metal Conduit; Applicable Standard NEC, CEC
• Catalog Number: ELBD50
• Brand Name: Unilets[R]
• Model: ELBD
• Type: Pulling
• Trade Size: 1/2 Inch
• Bend Angle: 90 Degree
• Connection Type: Female
• Material: Malleable Iron
• Catalog Description: ELBD SERIES 90 DEG PULLING ELBOW, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), LENGTH: 5.06 IN, TRADE SIZE: 1/2 IN, FLEXIBILITY: EMT, CONNECTION: FEMALE THREADED, DIMENSIONS: 2.69 IN WIDTH X 4-1/2 IN HEIGHT, STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS 1, DIVISION 1 AND 2, GROUP D CLASS II, DIVISION 1 AND 2, GROUPS E, F, G CLASS III, FOR USE WITH METAL CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; UL 886/1203, CSA C22.2 Approval; 1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Metal Conduit; Application Hazardous Location; Applicable Standard NEC; ELBD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381293105
• SKU Name: app elbd50

Resources

• Manufacturer Spec Sheet
