Appleton ELBY-125 1-1/4" 90D CAppletoned Elbow

Overview

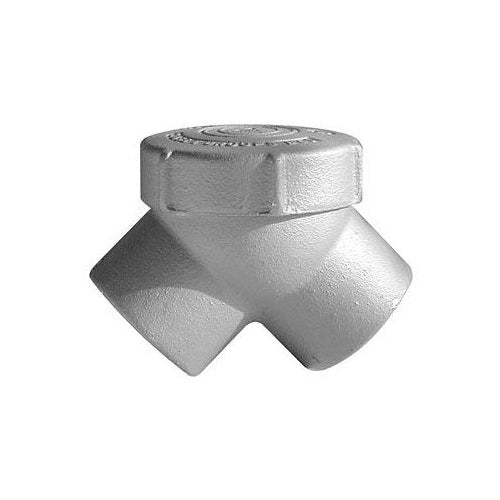

Appleton ELBY-125 1-1/4" 90D Capped Elbow

Product Specifications

• UPC: 78138129375
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated
• Approval: UL 886, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Dust-Ignitionproof; Enclosure Type Class I Div 1 and 2 Group B, Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III; Used On Threaded Metal Conduit; Applicable Standard NEC, CEC
• Catalog Number: ELBY-125
• Brand Name: Unilets[R]
• Model: ELBY
• Type: Capped, Pulling
• Trade Size: 1-1/4 Inch
• Bend Angle: 90 Degree
• Connection Type: Female
• Material: Malleable Iron
• Catalog Description: ELBY SERIES 90 DEG CAPPED ELBOW, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), LENGTH: 4 IN, TRADE SIZE: 1-1/4 IN, FLEXIBILITY: EMT, CONNECTION: FEMALE THREADED, DIMENSION C: 3.13 IN,
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Capped Type; Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; 1-1/4 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group B C D, Class 1 Zone 1 and 2 Group Iia Iib Plus H2, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; ELBY Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381293754
• SKU Name: app elby125
