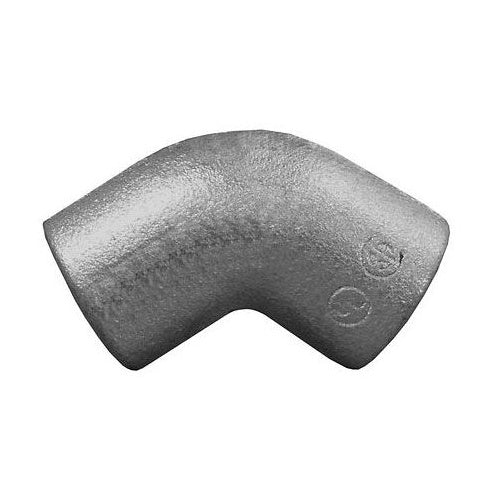

Appleton ELF45-50 1/2" 45D Female Elbow

Overview

Appleton ELF45-50 1/2" 45D Female Elbow

Product Specifications

• UPC: 78138129380
• Approval: UL 886, CSA C22.2
• Additional Information: Application Joining Conduit at a Fixed 45 or 90 Deg Angle, or at a Custom Angle
• Catalog Number: ELF45-50
• Brand Name: Unilet[R]
• Model: ELF
• Trade Size: 1/2 Inch
• Bend Angle: 45 Deg
• Connection Type: Female
• Material: Malleable Iron
• Finish: Zinc Electroplated
• Catalog Description: UNILETS 45 DEG ELBOW, MATERIAL: MALLEABLE IRON ASTM A47-77, FINISH: ZINC ELECTROPLATE, TRADE SIZE: 1/2 IN, FLEXIBILITY: RIGID AND IMC, CONNECTION: TAPERED FNPT, DIMENSION A: 1.19 IN, STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2 NO.
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Malleable Iron Material; Zinc Electroplated Finish; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; 1/2 Inch Trade Size; 45 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381293808
• SKU Name: app elf4550
