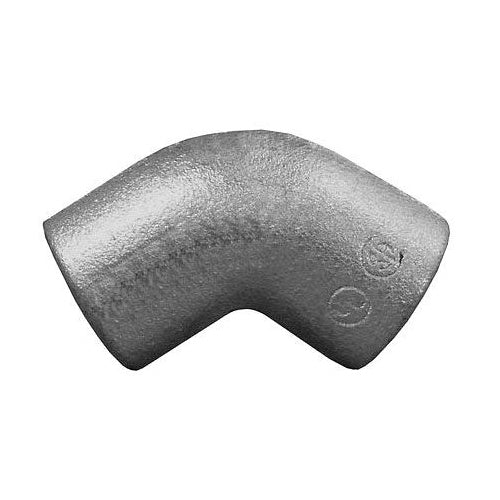

Appleton ELF4550A 45D 1/2" Female Elbow

Product Specifications

• UPC: 78138162213
• Material: COPPER FREE ALUMINUM
• Trade Size In Inch Uom: in
• Catalog Number: ELF4550A
• Brand Name: Appleton.
• Model: EL
• Trade Size: 1/2 INCH
• Trade Size In Inch: .5
• Trade Size Fractional: 1/2
• Bend Angle: 45 DEG
• Connection Type: FEMALE
• Catalog Description: UNILETS 45 DEG ELBOW, MATERIAL: ALUMINUM, FINISH: NATURAL ALUMINUM, TRADE SIZE: 1/2 IN, FLEXIBILITY: RIGID AND IMC, CONNECTION: TAPERED FNPT, DIMENSION A: 1.19 IN, STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2 NO. 25 AND 30, CSA 065
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Copper-Free Aluminum Material; Natural Finish; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; 1/2 Inch Trade Size; 45 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381622134
• SKU Name: app elf4550a
