Overview

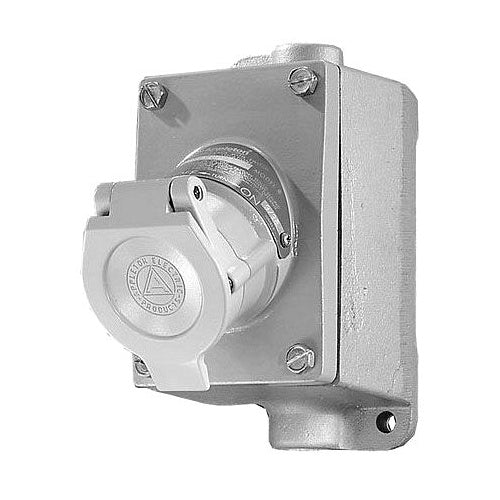

Appleton ENR21202 1-Gang Receptacle Assembly

Product Specifications

• UPC: 78138181548
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED COPPER FREE ALUMINUM COVER, MALLEABLE IRON BACKBOX, FIBERGLASS REINFORCED THERMOSET POLYESTER INSULATING BLOCK
• Mating Plug: ECP
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/7C/7D/9F/9G
• Catalog Number: ENR21202
• Brand Name: Contender[R]
• Model: ENR
• Type: SINGLE GANG
• Voltage Rating: 250 V
• Current Rating: 20 AMPERE
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: U-LINE CONTENDER 1-GANG RECEPTACLE WITH MOUNTING BOX, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 250 VAC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM COVER, MALLEABLE IRON MOUNTING BOX, NEM
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead End Type; 3/4 Inch Hub Size; 2 Wire(S); UL 894/1010/1203 Approval; 250 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B, Class II Div 1 and 2 Group F G, Class I Zone 1 Group Iib, Class I Zone 2 Group Iib + H2, Class III, NEMA 3/3R/3RX/7CD/9FG Enclosure; 20 Amp Current Rating; 2 HP Power Rating; 3 Pole(S); 1-Gang Box Type; Ecp Mating Plug; U-LINE[TM], CONTENDER[TM] Brand; Overall Dimension 3.5 Inch Width X 6.19 Inch Depth X 6.06 Inch Height; Constructional Feature Explosionproof/Dust Ignitionproof; Number of Conduit Opening 1; Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Mounting Box), Epoxy Powder Coated Copper-Free Aluminum (Cover); Application Lighting System, Conveyor, Heater Motor Generator Set, Air Conditioner, Compressor, Pump, Damp Location; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381815482
• SKU Name: app enr21202
