Overview

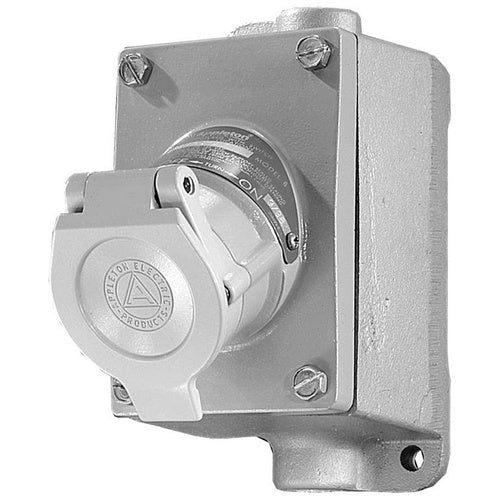

Appleton ENR32201SA 2-Gang Aluminum Receptacle Assembly

Product Specifications

• UPC: 78138181567
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED COPPER FREE ALUMINUM COVER, BACKBOX; FIBERGLASS REINFORCED THERMOSET POLYESTER INSULATING BLOCK
• Mating Plug: ECP
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP F G, CLASS III, NEMA 3/3R/7C/7D/9F/9G
• Catalog Number: ENR32201SA
• Brand Name: Contender[R]
• Model: ENR
• Type: TWO GANG
• Voltage Rating: 125 V
• Current Rating: 20 AMPERE
• Number Of Poles: 3
• Number Of Wires: 2
• Catalog Description: PIN AND SLEEVE RECEPTACLE ASSEMBLY, TYPE DEAD END, VOLTAGE RATING 125 VAC, CURRENT RATING 20 AMPERE, NUMBER OF POLES 3, NUMBER OF WIRES 2, HUB SIZE 1 INCH, BOX TYPE TWO GANG, COVER TYPE SPRING, MATING PLUG ECP-2023, NCP-2023, ENCLOSURE CLASS I GROUP C D, CLASS I DIV 2 GROUP B, CLASS I ZONE 1 GROUP IIB, CLASS I ZONE 2 GROUP IIB + H2, CLASS II GROUP F G, CLASS III, NEMA 3RX, APPROVAL UL 894/1010/1203, APPLICATION LIGHTING SYSTEMS, CONVEYORS, HEATERS, MOTOR-GENERATOR SETS, AIR CONDITIONERS, COMPRESSORS, PUMPS, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED COPPER-FREE ALUMINUM
• Category: Pin & Sleeve Devices
• Full Technical Description: Dead End Type; 1 Inch Hub Size; 2 Wire(S); UL 894/1010/1203 Approval; 125 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B, Class II Div 1 and 2 Group F G, Class I Zone 1 Group Iib, Class I Zone 2 Group Iib + H2, Class III, NEMA 3/3R/3RX/7CD/9FG Enclosure; 20 Amp Current Rating; 1 HP Power Rating; 3 Pole(S); 2-Gang Box Type; Ecp Mating Plug; U-LINE[TM], CONTENDER[TM] Brand; Overall Dimension 7.19 Inch Width X 6.19 Inch Depth X 6.17 Inch Height; Constructional Feature Explosionproof/Dust Ignitionproof; Number of Conduit Opening 1; Material Epoxy Powder Coated Copper-Free Aluminum (Mounting Box/Cover); Application Lighting System, Conveyor, Heater Motor Generator Set, Air Conditioner, Compressor, Pump, Damp Location; Applicable Standard N
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Receptacle Assembly
• Unspsc: 39121406
• UPC 12 Digit: 781381815673
• SKU Name: app enr32201sa
