Overview

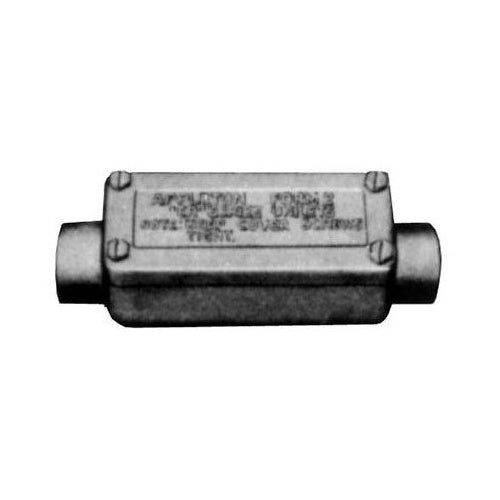

Appleton ERC75 3/4" ERC Unilet

Product Specifications

• UPC: 78138130245
• Cover Type: Blank
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Material: Zinc Electroplated Chromate/Epoxy Powder Coated Malleable Iron
• Approval: UL, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight, Corrosion Resistant; Includes Cover; Application Indoor/Outdoor; Used On Threaded Rigid Metal Conduit; Applicable Standard NEC
• Catalog Number: ERC75
• Brand Name: Appleton
• Model: ER
• Style: E
• Hub Size: 3/4 Inch
• Number Of Hubs: 2
• Hub Location: Feed-Through
• Shape: Rectangular
• Catalog Description: UNILETS ER SERIES TYPE C CONDUIT OUTLET BOX WITH COVER, HUB SIZE: 3/4 IN, LENGTH: 5.44 IN, WIDTH: 1-3/4 IN, HEIGHT: 2 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: TAPERED
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Rectangular Shape; 3/4 Inch Hub Size; 2 Hub(S); UL 886, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Blank Cover Type; C Style; (2) Side Hub Location; Taper Threaded Hub Type; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Rigid Metal Conduit; Application Indoor and Outdoor, Hazardous Location; Applicable Standard Nec/Cec; ER Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121308
• UPC 12 Digit: 781381302456
• SKU Name: app erc75

Resources

• Manufacturer Spec Sheet
