Overview

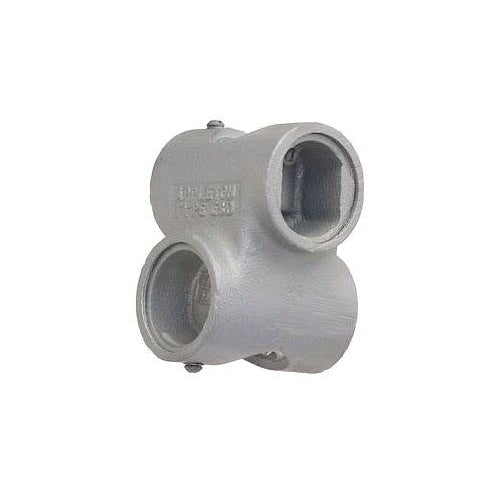

Appleton ESD75 3/4" Fixture Hanger Swivel

Product Specifications

• UPC: 78138130375
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Approval: UL, CSA
• Additional Information: Enclosure Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III; Includes Setscrew, Screwdriver
• Catalog Number: ESD75
• Brand Name: Unilet[R]
• Model: ESD
• Type: Flexible Fixture Hanger
• Fixture Type: HID, Fluorescent, Incandescent
• Swing Angle: 15 Deg
• Conduit Size: 3/4 Inch
• Number Of Hubs: 1
• Catalog Description: UNILETS 15 DEG SWIVEL HANGER, SIZE: 3/4 IN, MATERIAL: MALLEABLE IRON, LAMP TYPE: INCANDESCENT, FLUORESCENT, HID, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: CLASS I, DIVISION 1 AND 2, GROUPS A, B, C, D
• Category: Lighting Accessories
• Full Technical Description: Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; UL 1203 Approval; Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Explosionproof, Dust Ignitionproof; Type 15 Degree Swivel, 360 Degree Free-Swing; Width 3 Inch; Includes Set Screw, Screwdriver; Used on Rigid Conduit; Application Hazardous Location, Moisture/Dust and Corrosive Atmosphere; Applicable Standard Nec/Cec; ESD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Fixture Support
• Unspsc: 39111817
• UPC 12 Digit: 781381303750
• SKU Name: app esd75

Resources

• Manufacturer Spec Sheet
