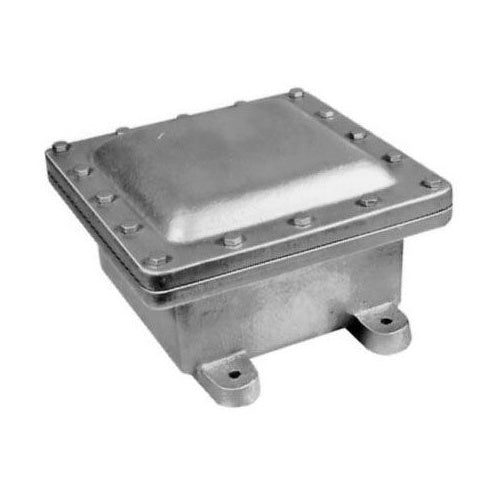

Appleton EXB040404 Explosion-Proof Junction Box

Overview

Appleton EXB040404 Explosion-Proof Junction Box

Product Specifications

• UPC: 78138160293
• Body Finish: HOT DIP GALVANIZED
• Cover Material: CAST IRON
• Cover Finish: HOT DIP GALVANIZED
• Catalog Number: EXB040404
• Brand Name: Appleton[R]
• Model: EXB
• Inner Size: 4 INCH L X 4 INCH W X 4 INCH D
• Wall Thickness: 0.5 INCH
• Cover Type: SCREW ON
• Enclosure: CLASS I GROUP D, CLASS II GROUP E F G, CLASS III
• Body Material: CAST IRON
• Catalog Description: EXPLOSIONPROOF CAST JUNCTION BOX, HUB SIZE 2 INCH, INNER SIZE 4 INCH L X 4 INCH W X 4 INCH D, WALL THICKNESS 0.47 INCH, COVER TYPE SCREW-ON, ENCLOSURE CLASS I DIV 1 AND 2 GROUP D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, BODY MATERIAL CAST IRON, BODY FINISH HOT DIP GALVANIZED, COVER MATERIAL CAST IRON, COVER FINISH HOT DIP GALVANIZED, MOUNTING FEET, APPROVAL UL 886/1203, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF
• Category: Cast Boxes
• Full Technical Description: 4 Inch Length X 4 Inch Width X 4 Inch Depth Inner Size; 2 Inch Hub Size; UL 886, CSA C22.2 Approval; Lug Mounting; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Cast Iron Body Material; Cast Iron Cover Material; 0.47 Inch Wall Thickness; Hot Dip Galvanized Body Finish; Hot Dip Galvanized Cover Finish; Constructional Feature Explosionproof/Dust Ignitionproof; Applicable Standard Nec/Cec; EXB Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121331
• UPC 12 Digit: 781381602938
• SKU Name: app exb040404

Resources

• Manufacturer Spec Sheet
