Overview

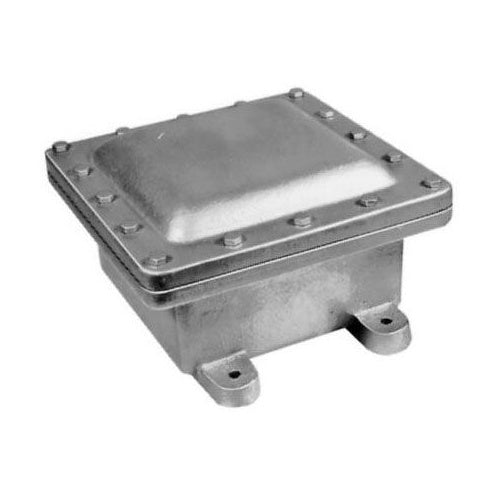

Appleton EXB080804 Explosion-Proof Junction Box

Product Specifications

• UPC: 78138160302
• Body Finish: Hot Dip Galvanized
• Cover Material: Cast Iron
• Cover Finish: Hot Dip Galvanized
• Mounting: Mounting Feet
• Approval: UL 886/1203
• Catalog Number: EXB080804
• Model: EXB
• Hub Size: 2 Inch
• Inner Size: 8 Inch L x 8 Inch W x 4 Inch D
• Wall Thickness: 0.63 Inch
• Cover Type: Screw-On
• Enclosure: Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III
• Body Material: Cast Iron
• Catalog Description: EXPLOSIONPROOF CAST JUNCTION BOX, HUB SIZE 2 INCH, INNER SIZE 8 INCH L X 8 INCH W X 4 INCH D, WALL THICKNESS 0.63 INCH, COVER TYPE SCREW-ON, ENCLOSURE CLASS I DIV 1 AND 2 GROUP D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, BODY MATERIAL CAST IRON, BODY FINISH HOT DIP GALVANIZED, COVER MATERIAL CAST IRON, COVER FINISH HOT DIP GALVANIZED, MOUNTING FEET, APPROVAL UL 886/1203, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF
• Category: Cast Boxes
• Full Technical Description: 8 Inch Length X 8 Inch Width X 4 Inch Depth Inner Size; 2 Inch Hub Size; UL 886, CSA C22.2 Approval; Lug Mounting; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Cast Iron Body Material; Cast Iron Cover Material; 0.63 Inch Wall Thickness; Hot Dip Galvanized Body Finish; Hot Dip Galvanized Cover Finish; Constructional Feature Explosionproof/Dust Ignitionproof; Applicable Standard Nec/Cec; EXB Model
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121331
• UPC 12 Digit: 781381603027
• SKU Name: app exb080804
