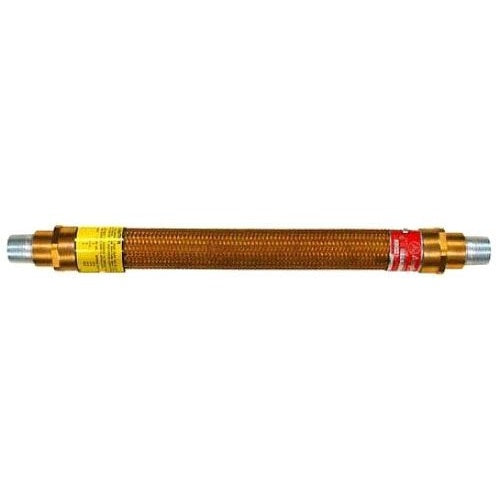

Appleton EXGJH-1024 4X24 Flex Coupling

Overview

Appleton EXGJH-1024 4X24 Flex Coupling

Product Specifications

• UPC: 78138128508
• Enclosure: Class I Group D, Class II Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Insulating Liner; Constructional Feature Watertight; Used On Rigid Metal Conduit and IMC
• Catalog Number: EXGJH-1024
• Brand Name: Unilet[R]
• Model: EXGJH
• Trade Size: 4 Inch
• Fitting Material: Stainless Steel End
• Material: Stainless Steel Braid, Stainless Steel Core
• End Type: (2) Male Nipple
• Length: 24 Inch
• Catalog Description: FLEXIBLE CONDUIT COUPLING, TRADE SIZE 4 IN, FITTING MATERIAL NATURAL FINISHED STAINLESS STEEL, MATERIAL NATURAL FINISHED STAINLESS STEEL BRAID/CORE, END TYPE (2) MALE NIPPLES, FLEX LENGTH 24 IN, ENCLOSURE CLASS I GROUP D, CLASS II GROUP E F G, CLASS III, APPROVAL UL 886, CSA C22.2, INCLUDES INSULATING LINER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, USED ON RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Stainless Steel With Insulating Liner (Outer Braid/Inner Core) Material; 24 Inch; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia, Class III Enclosure; 4 Inch Trade Size; (2) Female End Type; Stainless Steel (End), Zinc Plated Steel (Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 48 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard Nec/Cec; EXGJH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381285087
• SKU Name: app exgjh1024
