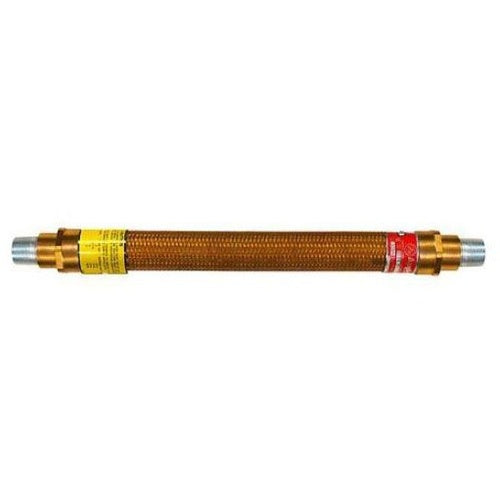

Appleton EXGJH-118-SS 1/2X18 Flex Coupling

Overview

Appleton EXGJH-118-SS 1/2X18 Flex Coupling

Product Specifications

• UPC: 78138161188
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Approval: UL 1203, CSA C22.2
• Additional Information: WITH INSULATING LINER
• Catalog Number: EXGJH-118-SS
• Brand Name: Unilet[R]
• Model: EXGJH
• Trade Size: 1/2 Inch
• Fitting Material: Stainless Steel
• Material: Bronze (Braid), Brass (Core)
• End Type: (2) Male Nipple
• Length: 18 Inch
• Catalog Description: UNILETS FLEXIBLE COUPLING, TRADE SIZE: 1/2 IN, OUTSIDE DIAMETER: 1.41 IN, FLEX LENGTH: 18 IN, RADIUS: 10 IN BENDING, FLEXIBILITY: RIGID AND IMC, MATERIAL: OUTER BRONZE BRAID AND INNER BRASS CORE WITH INSULATING LINER, END TYPE: (2) MALE NIPPLES
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Stainless Steel Material; 18 Inch; UL 886/1203, CSA C22.2 Approval; IP66 Enclosure; 1/2 Inch Trade Size; (2) Female End Type; Brass (End), Zinc Plated Steel (Union/Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 10 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard ATEX; EXGJH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381611886
• SKU Name: app exgjh118ss

Resources

• Manufacturer Spec Sheet
