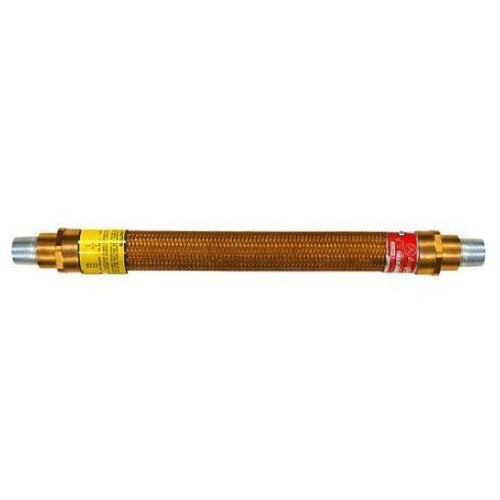

Appleton EXGJH-210-SS 3/4X10 Flex Coupling

Overview

Appleton EXGJH-210-SS 3/4X10 Flex Coupling

Product Specifications

• UPC: 78138161197
• Enclosure: CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Additional Information: WITH INSULATING LINER
• Catalog Number: EXGJH-210-SS
• Brand Name: UNILETS.
• Model: EXGJH
• Trade Size: 3/4 INCH
• Fitting Material: NATURAL FINISHED STAINLESS STEEL
• Material: BRONZE BRAID, BRASS CORE
• End Type: (2) MALE NIPPLE
• Length: 10 INCH
• Catalog Description: UNILETS FLEXIBLE COUPLING, TRADE SIZE: 3/4 IN, OUTSIDE DIAMETER: 1-3/4 IN, FLEX LENGTH: 10 IN, RADIUS: 12 IN BENDING, FLEXIBILITY: RIGID AND IMC, MATERIAL NATURAL FINISHED STAINLESS STEEL BRAID/CORE WITH INSULATING LINER, END TYPE: (2) MALE NIPPLES
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Stainless Steel Material; 10 Inch; UL 886/1203, CSA C22.2 Approval; IP66 Enclosure; 3/4 Inch Trade Size; (2) Female End Type; Brass (End), Zinc Plated Steel (Union/Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 12 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard ATEX; EXGJH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381611978
• SKU Name: app exgjh210ss

Resources

• Manufacturer Spec Sheet
