Appleton exgjh236ss

Overview

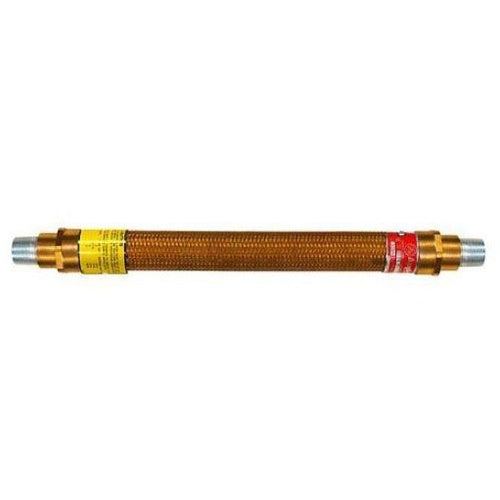

Appleton EXGJH-236-SS 3/4X36 Flex Coupling

Product Specifications

• Part Number: EXGJH-236-SS
• UPC / GTIN: 78138161208
• UPC: 78138161208
• Enclosure: Class I Group A B C D, Class II Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Insulating Liner; Constructional Feature Watertight; Used On Rigid Metal Conduit and IMC
• Brand Name: Unilet[R]
• Model: EXGJH
• Trade Size: 3/4 Inch
• Fitting Material: Stainless Steel End
• Material: Bronze Braid, Brass Core
• End Type: (2) Male Nipple
• Length: 36 Inch
• CATALOG DESCRIPTION: UNILETS FLEXIBLE COUPLING, TRADE SIZE: 3/4 IN, OUTSIDE DIAMETER: 1-3/4 IN, FLEX LENGTH: 36 IN, RADIUS: 12 IN BENDING, FLEXIBILITY: RIGID AND IMC, MATERIAL NATURAL FINISHED STAINLESS STEEL BRAID/CORE WITH INSULATING LINER, END TYPE: (2) MALE NIPPLES
• Full Technical Description: Stainless Steel Material; 36 Inch; UL 886/1203, CSA C22.2 Approval; IP66 Enclosure; 3/4 Inch Trade Size; (2) Female End Type; Brass (End), Zinc Plated Steel (Union/Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 12 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard ATEX; EXGJH Model
• Manufacturer: Appleton Electric
• Product Description: Appleton EXGJH-236-SS 3/4X36 Flex Coupling
• UNSPSC: 39131707
• UPC 12 Digit: 781381612081
