Appleton exgjh310ss

Overview

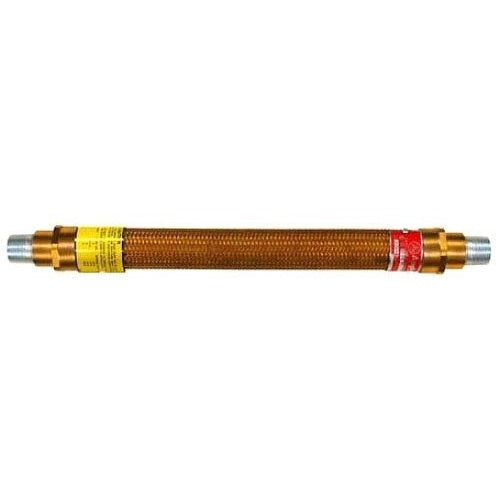

Appleton EXGJH-310-SS 1X10 Flex Coupling

Product Specifications

• Part Number: EXGJH-310-SS
• UPC / GTIN: 78138161209
• UPC: 78138161209
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Additional Information: WITH INSULATING LINER
• Brand Name: UNILETS.
• Model: EXGJH
• Trade Size: 1 INCH
• Fitting Material: NATURAL FINISHED STAINLESS STEEL
• Material: BRONZE BRAID, BRASS CORE
• End Type: (2) MALE NIPPLE
• Length: 10 INCH
• CATALOG DESCRIPTION: FLEXIBLE CONDUIT COUPLING, TRADE SIZE 1 IN, FITTING MATERIAL NATURAL FINISHED STAINLESS STEEL, MATERIAL NATURAL FINISHED STAINLESS STEEL BRAID/CORE, END TYPE (2) MALE NIPPLE, FLEX LENGTH 10 IN, ENCLOSURE CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III, APPROVAL UL 886, CSA C22.2, INCLUDES INSULATING LINER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, USED ON RIGID METAL CONDUIT AND IMC
• Full Technical Description: Stainless Steel Material; 10 Inch; UL 886/1203, CSA C22.2 Approval; IP66 Enclosure; 1 Inch Trade Size; (2) Female End Type; Brass (End), Zinc Plated Steel (Union/Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 14 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard ATEX; EXGJH Model
• Manufacturer: Appleton Electric
• Product Description: Appleton EXGJH-310-SS 1X10 Flex Coupling
• UNSPSC: 39131707
• UPC 12 Digit: 781381612098
