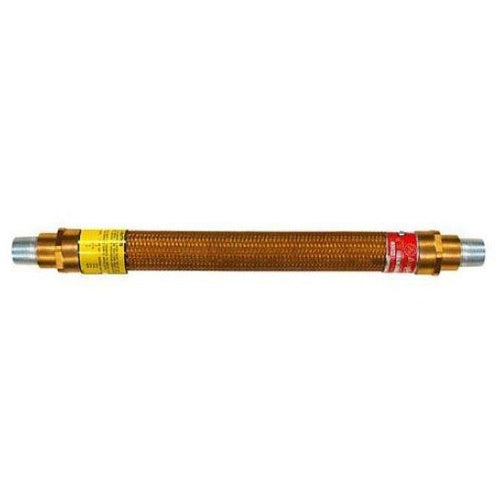

Appleton EXGJH-315 1X15 Flex Coupling

Overview

Appleton EXGJH-315 1X15 Flex Coupling

Product Specifications

• UPC: 78138131825
• Enclosure: Class I Group C D, Class II Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Insulating Liner; Constructional Feature Watertight; Used On Rigid Metal Conduit and IMC
• Catalog Number: EXGJH-315
• Brand Name: Unilet[R]
• Model: EXGJH
• Trade Size: 1 Inch
• Fitting Material: Brass End
• Material: Bronze Braid, Brass Core
• End Type: (2) Male Nipple
• Length: 15 Inch
• Catalog Description: FLEXIBLE CONDUIT COUPLING, TRADE SIZE 1 IN, FITTING MATERIAL NATURAL FINISHED BRASS, MATERIAL NATURAL FINISHED BRONZE BRAID, NATURAL FINISHED BRASS CORE, END TYPE (2) MALE NIPPLE, FLEX LENGTH 15 IN, ENCLOSURE CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III, APPROVAL UL 886, CSA C22.2, INCLUDES INSULATING LINER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, USED ON RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bronze (Outer Braid), Brass With Insulating Liner (Inner Core) Material; 15 Inch; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia Iib, Class III Enclosure; 1 Inch Trade Size; (2) Female End Type; Brass (End), Zinc Plated Steel (Union/Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 14 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard Nec/Cec; EXGJH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381318259
• SKU Name: app exgjh315
