Appleton EXGJH-318-SS 1X18 Flex Coupling

Overview

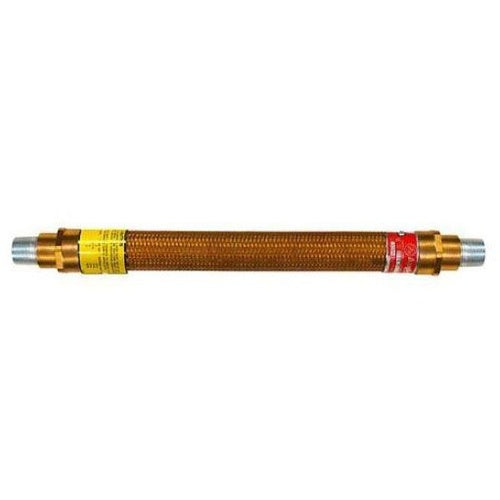

Appleton EXGJH-318-SS 1X18 Flex Coupling

Product Specifications

• UPC: 78138161213
• Enclosure: Class I Group C D, Class II Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Insulating Liner; Constructional Feature Watertight; Used On Rigid Metal Conduit and IMC
• Catalog Number: EXGJH-318-SS
• Brand Name: Unilet[R]
• Model: EXGJH
• Trade Size: 1 Inch
• Fitting Material: Stainless Steel End
• Material: Bronze Braid, Brass Core
• End Type: (2) Male Nipple
• Length: 18 Inch
• Catalog Description: UNILETS FLEXIBLE COUPLING, TRADE SIZE: 1 IN, OUTSIDE DIAMETER: 2.06 IN, FLEX LENGTH: 18 IN, RADIUS: 14 IN BENDING, FLEXIBILITY: RIGID AND IMC, MATERIAL NATURAL FINISHED STAINLESS STEEL BRAID/CORE WITH INSULATING LINER, END TYPE: (2) MALE NIPPLES
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Stainless Steel Material; 18 Inch; UL 886/1203, CSA C22.2 Approval; IP66 Enclosure; 1 Inch Trade Size; (2) Female End Type; Brass (End), Zinc Plated Steel (Union/Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 14 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard ATEX; EXGJH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381612135
• SKU Name: app exgjh318ss

Resources

• Manufacturer Spec Sheet
