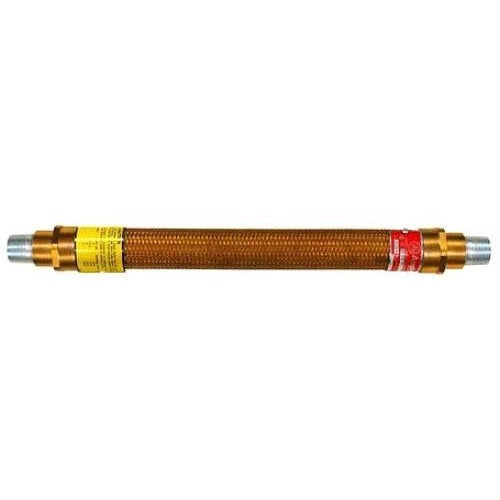

Appleton EXGJH512SS 1-1/2X12 Flex Coupling

Overview

Appleton EXGJH512SS 1-1/2X12 Flex Coupling

Product Specifications

• UPC: 78138179270
• Enclosure: CLASS I DIV 1 AND 2 GROUP D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III
• Additional Information: WITH INSULATING LINER
• Catalog Number: EXGJH512SS
• Brand Name: UNILETS.
• Model: EXGJH
• Trade Size: 1-1/2 INCH
• Fitting Material: NATURAL FINISHED STAINLESS STEEL
• Material: BRONZE BRAID, BRASS CORE
• End Type: (2) MALE NIPPLE
• Length: 12 INCH
• Catalog Description: UNILETS FLEXIBLE COUPLING, TRADE SIZE: 1-1/2 IN, OUTSIDE DIAMETER: 3.13 IN, FLEX LENGTH: 12 IN, RADIUS: 16 IN BENDING, FLEXIBILITY: RIGID AND IMC,MATERIAL NATURAL FINISHED STAINLESS STEEL BRAID/CORE WITH INSULATING LINER, CONNECTION: FEMALE THREADED, FINISH: NATURAL, FLEX LENGTH: 12 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 25, C22.2 NO. 30, CSA 065181 CERTIFED, CLASS I, DIVISION 1 AND 2 AND CLASS II, IVISION 1 AND 2, SUITABLE FOR CLASS I, GROUP D, CLASS II, GROUPS E, F, G, CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Stainless Steel Material; 12 Inch; UL 886/1203, CSA C22.2 Approval; IP66 Enclosure; 1-1/2 Inch Trade Size; (2) Female End Type; Brass (End), Ductile Iron (Union), Zinc Plated Steel (Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 16 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard ATEX; EXGJH Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381792707
• SKU Name: app exgjh512ss
