Overview

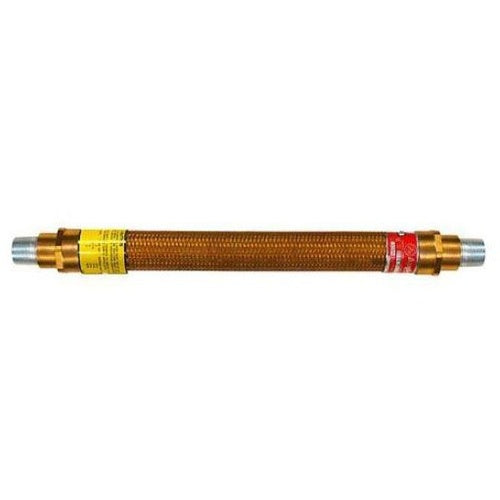

Appleton EXGJH-521 1-1/2X21 Flex Coupling

Product Specifications

• UPC: 78138131925
• Enclosure: Class I Group D, Class II Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Additional Information: Includes Insulating Liner; Constructional Feature Watertight; Used On Rigid Metal Conduit and IMC
• Catalog Number: EXGJH-521
• Brand Name: Unilet[R]
• Model: EXGJH
• Trade Size: 1-1/2 Inch
• Fitting Material: Brass End
• Material: Bronze Braid, Brass Core
• End Type: (2) Male Nipple
• Length: 21 Inch
• Catalog Description: UNILETS FLEXIBLE COUPLING, TRADE SIZE: 1-1/2 IN, OUTSIDE DIAMETER: 3.13 IN, FLEX LENGTH: 21 IN, RADIUS: 16 IN BENDING, FLEXIBILITY: RIGID AND IMC, MATERIAL: OUTER BRONZE BRAID AND INNER BRASS CORE WITH INSULATING LINER, CONNECTION: FEMALE THREADED, FINISH: NATURAL, FLEX LENGTH: 21 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 25, C22.2 NO. 30, CSA 065181 CERTIDED, CLASS I, DIVISION 1 AND 2 AND CLASS II, DIVISION 1 AND 2, SUITABLE FOR CLASS I, GROUP D, CLASS II, GROUPS E, F, G, CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Bronze (Outer Braid), Brass With Insulating Liner (Inner Core) Material; 21 Inch; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group Iia, Class III Enclosure; 1-1/2 Inch Trade Size; (2) Female End Type; Brass (End), Ductile Iron (Union), Zinc Plated Steel (Nipple) Fitting Material; UNILETS[R] Brand; Type Heavy Duty; Constructional Feature Explosionproof/Dust Ignitionproof, Water Tight; Bending Radius 16 Inch; Ambient Temperature Rating -40 to 302 Deg F; Finish Natural; Used on Threaded Rigid Metal Conduit and IMC; Includes (2) Removal Male Nipple; Application Hazardous/Wet Location; Applicable Standard Nec/Cec; EXGJH
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 781381319256
• SKU Name: app exgjh521
